Assembly

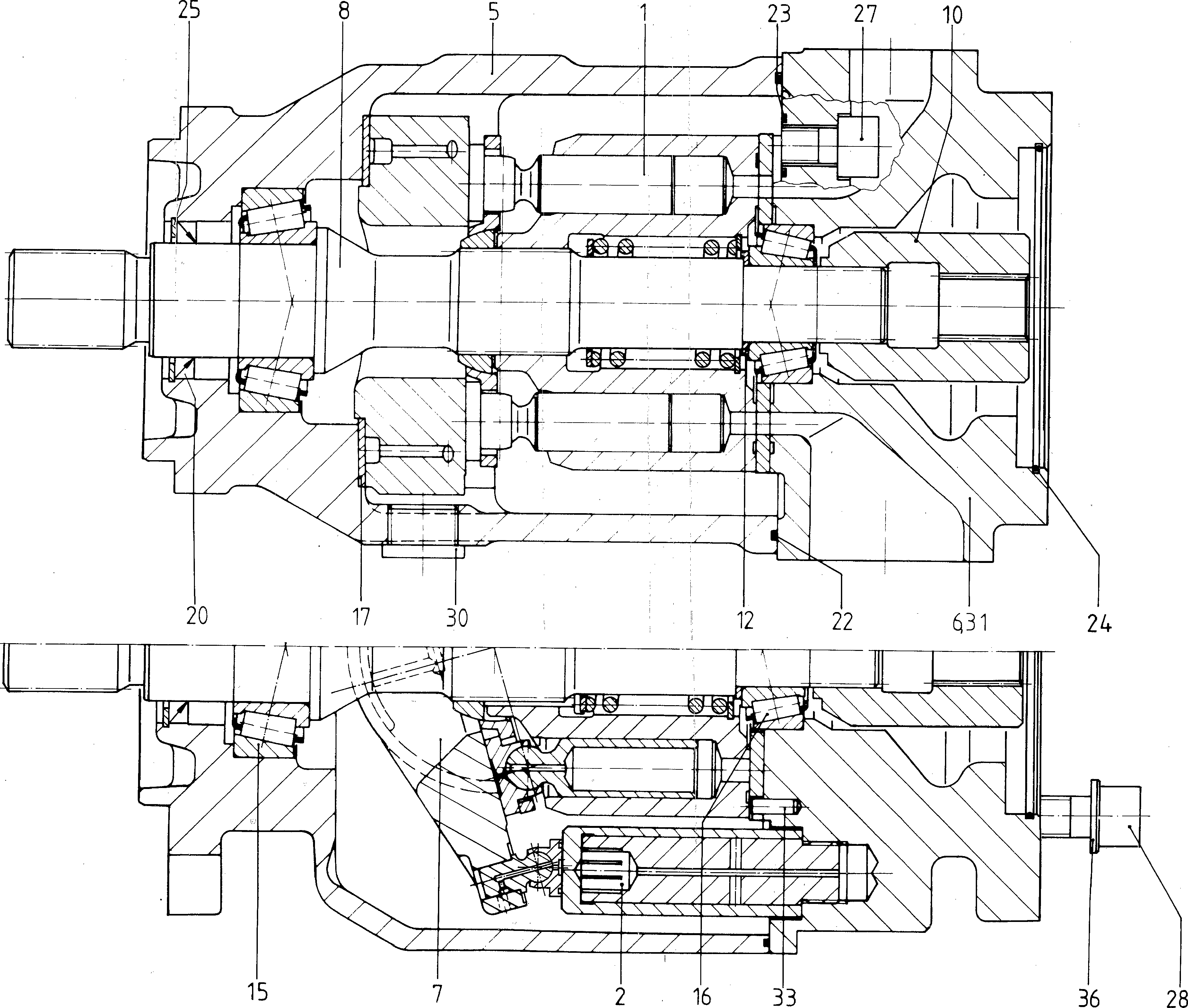

BASE UNITR902454143
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910906871 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910913785 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 5 | R910906803 | PUMP HOUSING | 1 | |
| 6 | R910988548 | CONNECTION PLATE | 1 | |
| 7 | R910961050 | SWASH PLATE Assembly parts list →L | 1 | |
| 8 | R910993523 | DRIVE SHAFT | 1 | |
| 10 | R902436086 | SPLINED COUPLING | 1 | |
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R910113174 | SHAFT SEALING RINGD | 1 | ||
| R910912756 | O-RINGD | 1 | ||
| 23 | R913050578 | R-RINGD | 4 | |
| R910631175 | O-RINGD | 1 | ||
| 25 | R909832149 | RETAINING RING | 1 | |
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967351 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 |
