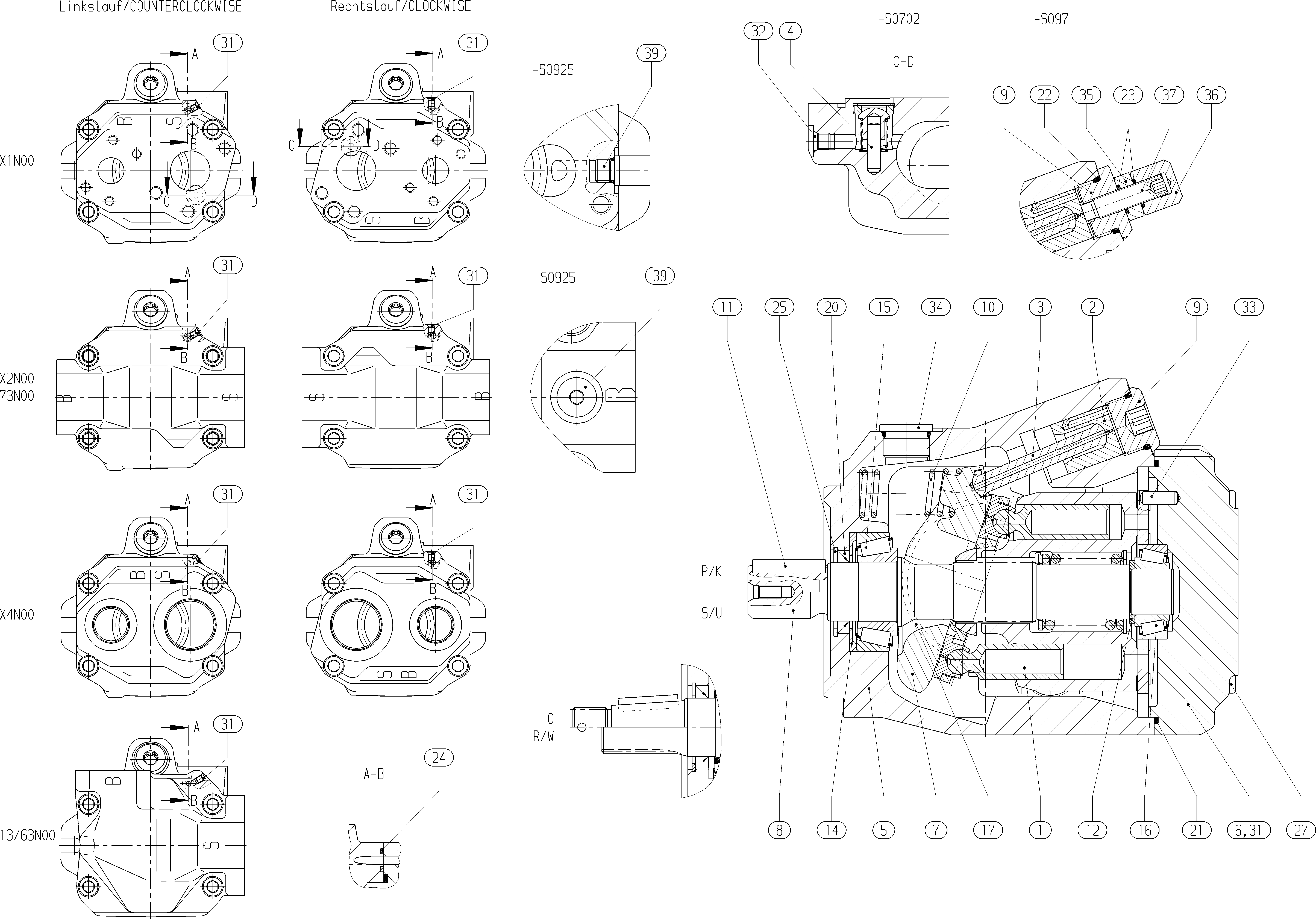

Assembly
BASE UNITR902455262
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902435270 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902451481 | PUMP HOUSING | 1 | ||
| R910970275 | CONNECTION PLATE | 1 | ||
| R902437705 | SWASH PLATE | 1 | ||
| R910992268 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG | 1 | ||
| R910928606 | COMPRESSION SPRING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910987963 | STOP RING | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933793 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| — | O-RINGD | 1 | ||
| R910942133 | R-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910110248 | SOCKET HEAD CAP SCREW | 4 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910967343 | SCREW PLUG | 1 |
