Assembly

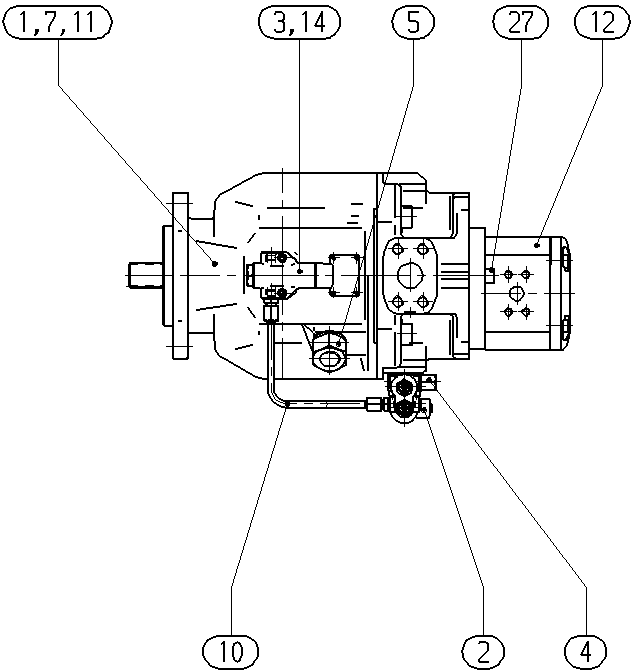

AXIAL-PISTON PUMPR902456281
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902456260 | BASE UNIT Assembly parts list →L | 1 | ||
| R902456282 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910932943 | ADAPTER Assembly parts list →L | 1 | ||
| R910913483 | ADAPTER Assembly parts list →L | 1 | ||
| R910917804 | SIDE MARKER RING | 1 | ||
| R902456284 | PIPING Assembly parts list →L | 1 | ||
| R902456274 | POWER DIAGRAM | 1 | ||
| 0510725108 | HYDRAULIC GEAR PUMPL | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R910121142 | SOCKET HEAD CAP SCREW | 2 |
