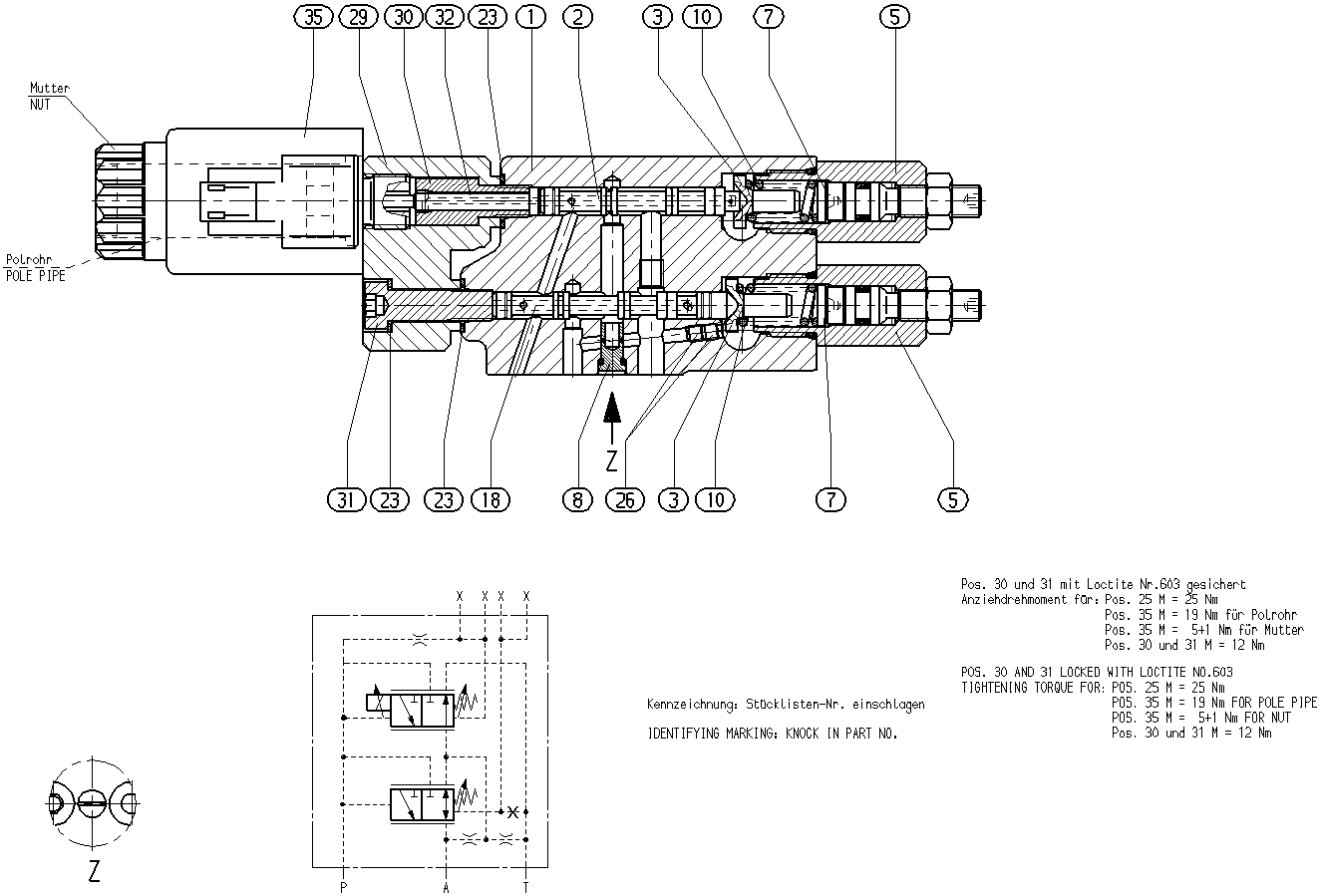

Assembly
CONTROL VALVER902456283
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902447608 | VALVE HOUSING | 1 | ||
| R910913047 | VALVE SPOOL | 1 | ||
| R910920595 | SPRING DISK | 2 | ||
| R902451578 | SERVO UNIT Assembly parts list →L | 2 | ||
| R910900362 | WASHER | 2 | ||
| R902451582 | ORIFICE Assembly parts list →L | 1 | ||
| R910920596 | COMPRESSION SPRING | 2 | ||
| R902424963 | VALVE SPOOL | 1 | ||
| R910642827 | BONDED SEAL RING | 3 | ||
| R910914741 | SETSCREW | 2 | ||
| R902451724 | DOUBLE ADAPTER | 1 | ||
| R902425656 | HOLLOW BOLT | 1 | ||
| R902451725 | SCREW | 1 | ||
| R902436048 | CONNECTING ROD | 1 | ||
| R902650783 | PROPORTIONAL SOLENOID | 1 |
