Assembly

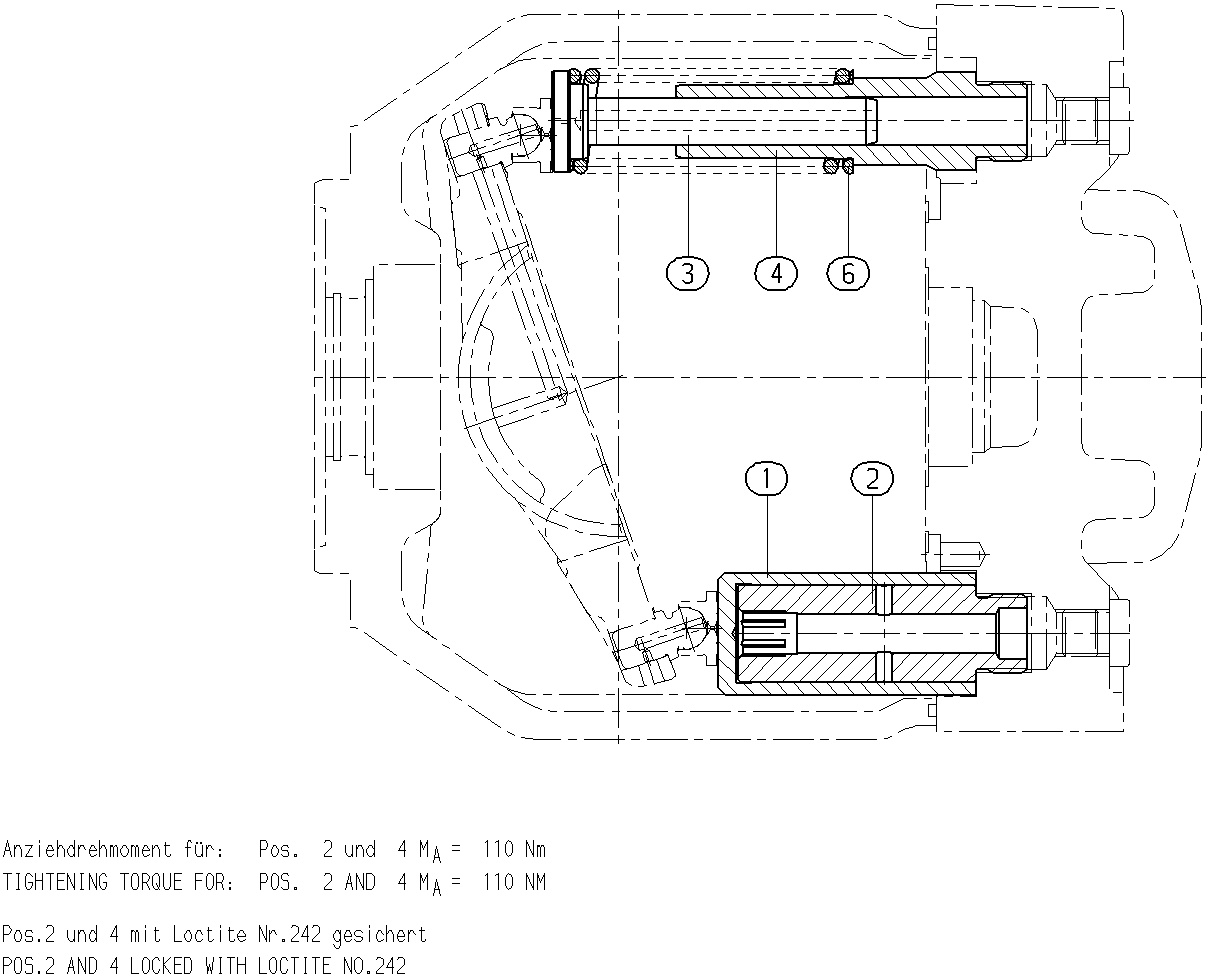

ADJUSTING PIECER902459548
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910913441 | ADJUSTING PISTON | 1 | ||
| R902533326 | PISTON GUIDE | 1 | ||
| R910909054 | OPPOSED PISTON | 1 | ||
| R902534016 | PISTON GUIDE | 1 | ||
| R910711608 | COMPRESSION SPRING | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910913441 | ADJUSTING PISTON | 1 | ||
| R902533326 | PISTON GUIDE | 1 | ||
| R910909054 | OPPOSED PISTON | 1 | ||
| R902534016 | PISTON GUIDE | 1 | ||
| R910711608 | COMPRESSION SPRING | 1 |
