Assembly

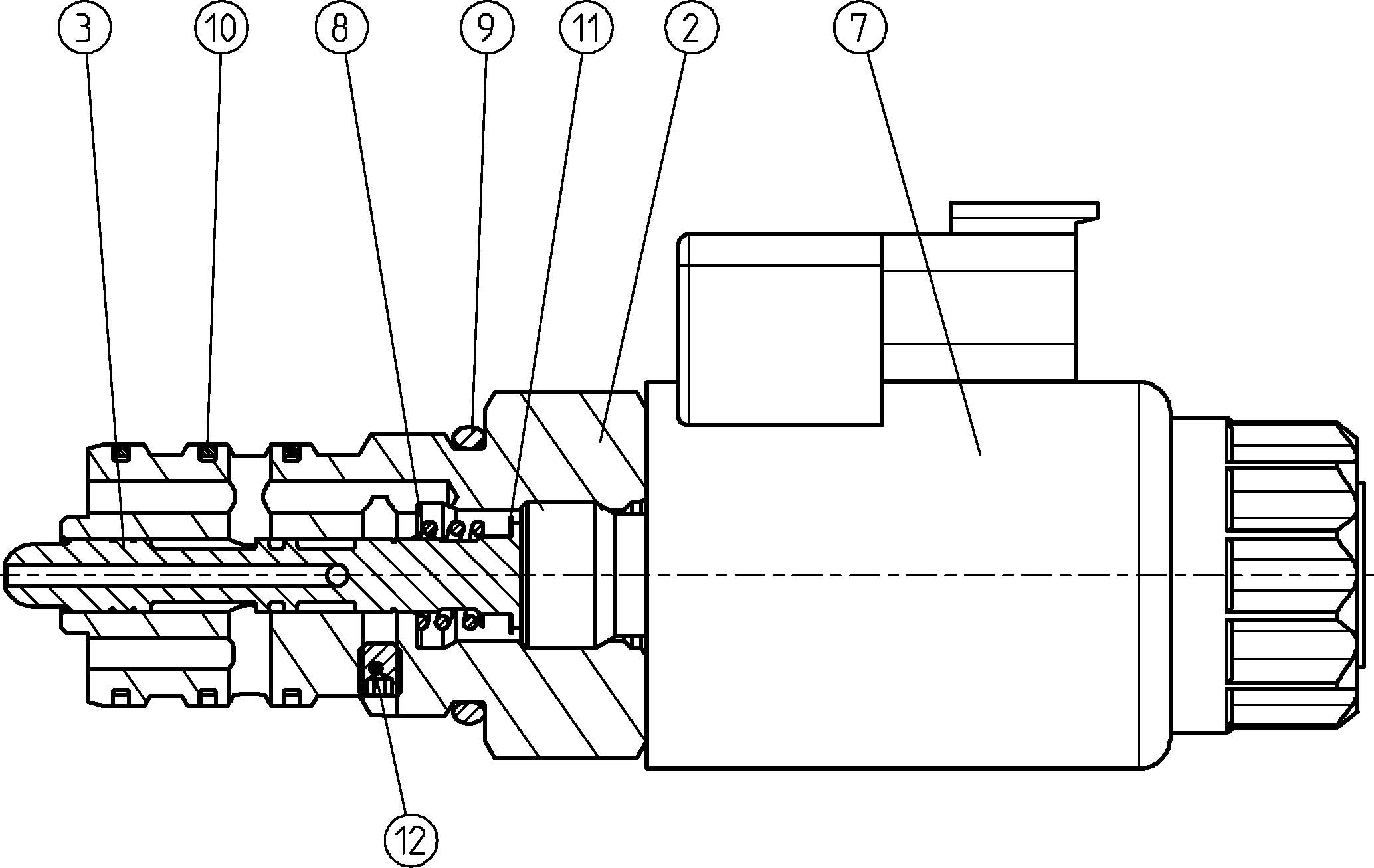

CONTROL VALVER902459803
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902443914 | PISTON GUIDE | 1 | ||
| R902438669 | VALVE SPOOL | 1 | ||
| R913041862 | PROPORTIONAL SOLENOID | 1 | ||
| R902418915 | COMPRESSION SPRING | 1 | ||
| R910965435 | O-RING | 1 | ||
| R902650529 | R-RING | 3 | ||
| R902428312 | ADJUSTMENT SHIM | 1 | ||
| R910303518 | SETSCREW | 1 |
