Assembly

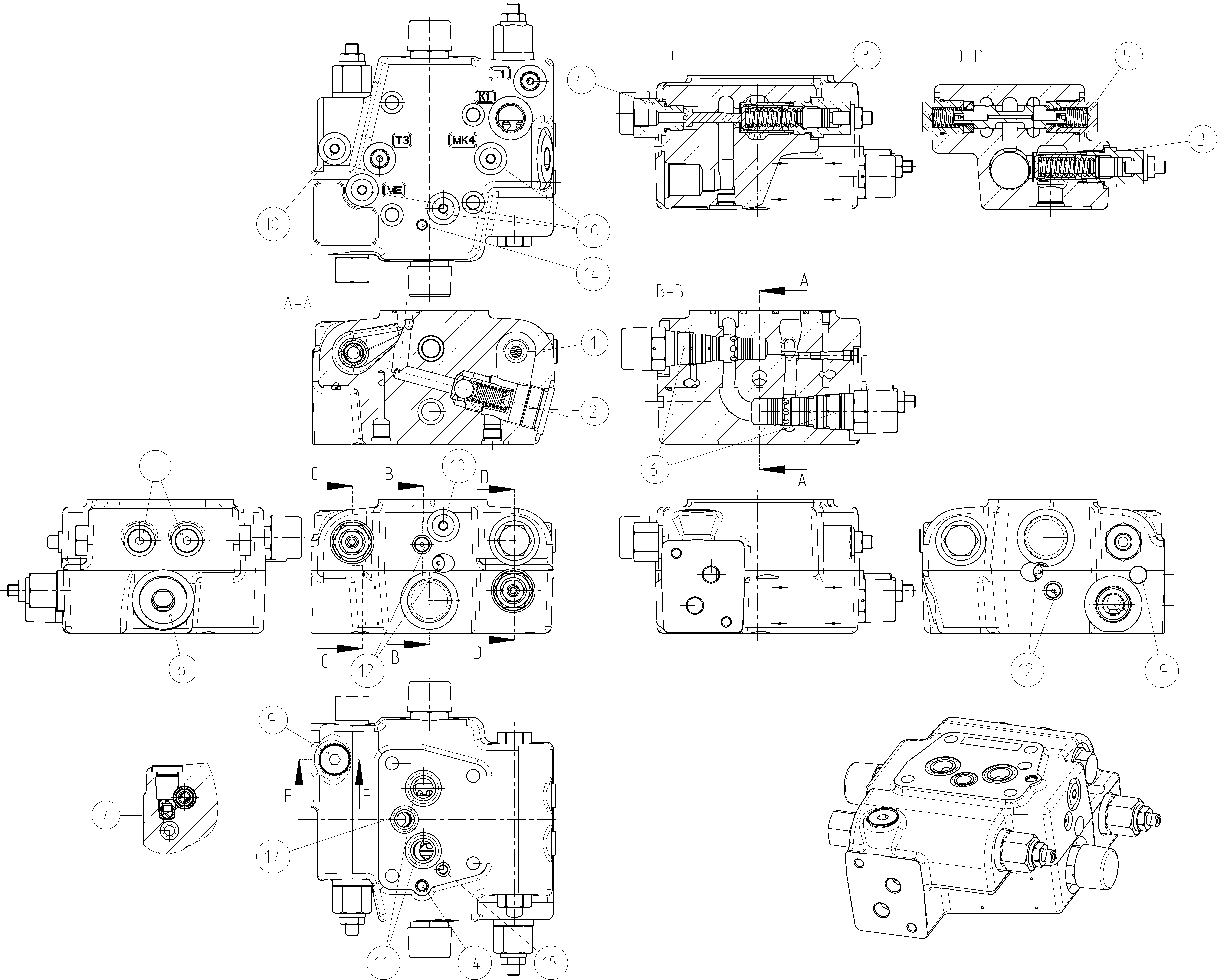

VALVE BLOCKR902464840
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902421961 | HOUSING | 1 | ||
| R902421373 | CHECK VALVE Assembly parts list →L | 1 | ||
| R902453320 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902421345 | OPERATION Assembly parts list →L | 1 | ||
| R902463987 | FLUSHING VALVE Assembly parts list →L | 1 | ||
| R902650714 | PRESSURE RELIEF VALVE | 2 | ||
| R902435571 | CHECK VALVE | 1 | ||
| R902601857 | SCREW PLUG | 1 | ||
| R909156651 | SCREW PLUG | 1 | ||
| R909157039 | SCREW PLUG | 5 | ||
| R909153930 | SCREW PLUG | 2 | ||
| R909156863 | SCREW PLUG | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910536792 | O-RING | 2 | ||
| R910515574 | O-RING | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910938084 | DOUBLE BREAK-OFF PLUG | 1 |
