Assembly

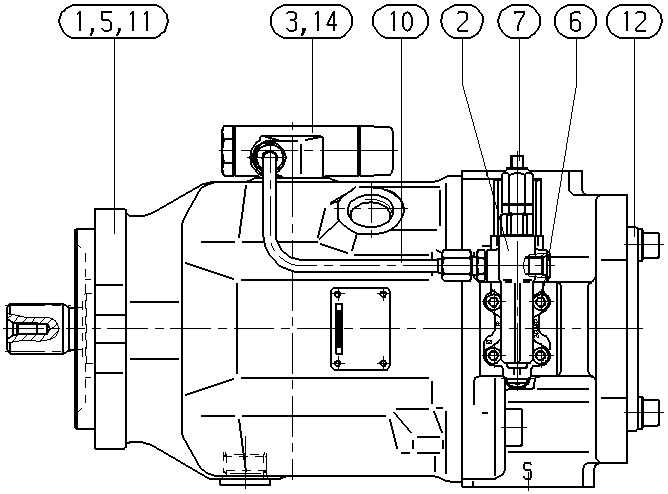

AXIAL-PISTON PUMPR902465243
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902461746 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533468 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910918094 | SIDE MARKER RING | 1 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 4 | ||
| R902455818 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910963797 | PIPING Assembly parts list →L | 1 | ||
| R902462674 | POWER DIAGRAM | 1 | ||
| R902469008 | SEALING COVER Assembly parts list →L | 1 | ||
| R909154478 | SCREW PLUG | 1 |
