Assembly

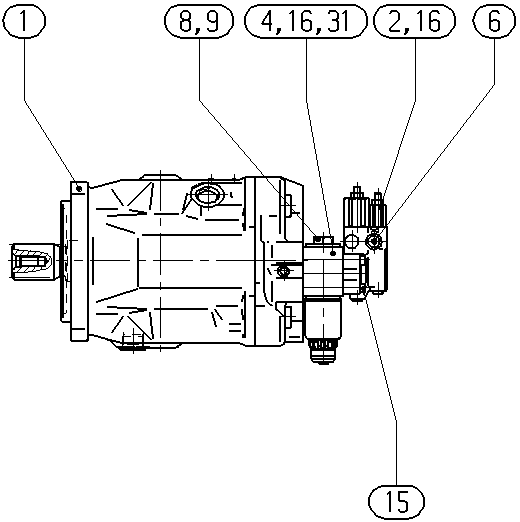

AXIAL-PISTON PUMPR902466122
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902462424 | BASE UNIT Assembly parts list →L | 1 | ||
| R902465638 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902469141 | INTERMEDIATE PLATE | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R902650786 | DIRECTIONAL SPOOL VALVE | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R910359491 | SOCKET HEAD CAP SCREW | 4 | ||
| R902434482 | SEAL | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
