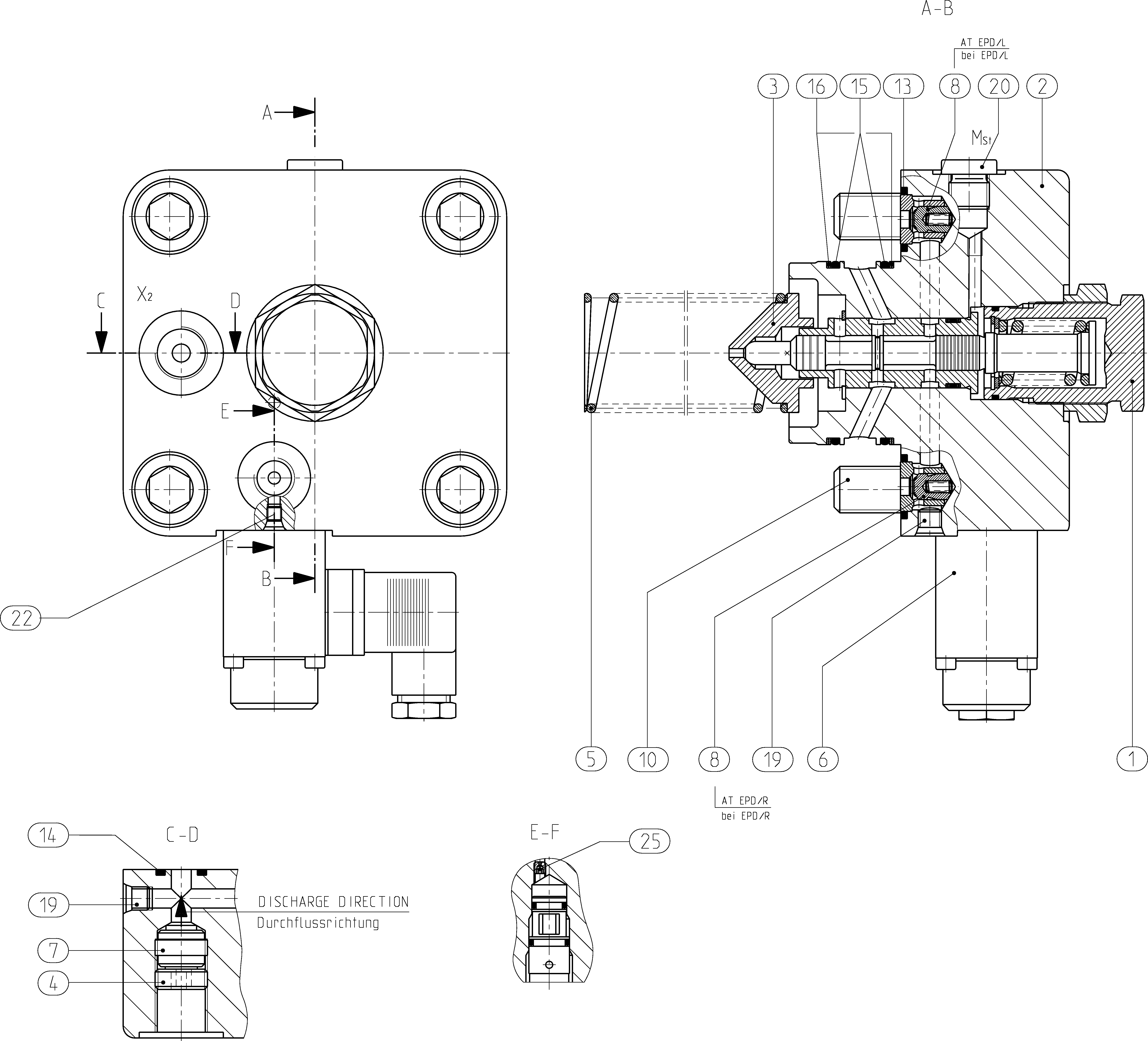

Assembly
CONTROL PARTR902466897
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910926601 | VALVE INSERT | 1 | ||
| R910930368 | CONTROL HOUSING | 1 | ||
| R910930294 | SPRING DISK | 1 | ||
| R910936228 | THREADED RING | 1 | ||
| R910936229 | COMPRESSION SPRING | 1 | ||
| R902408869 | PRESSURE REDUCING VALVE Assembly parts list →L | 1 | ||
| R910931879 | CHECK VALVE | 1 | ||
| R910974764 | HY-CHECK VALVE | 1 | ||
| R909153934 | SOCKET HEAD CAP SCREW | 4 | ||
| R910515574 | O-RING | 2 | ||
| R910518336 | O-RING | 4 | ||
| R910930814 | O-RING | 2 | ||
| R910927882 | BACKUP RING | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910921703 | NOZZLE | 1 |
