Assembly

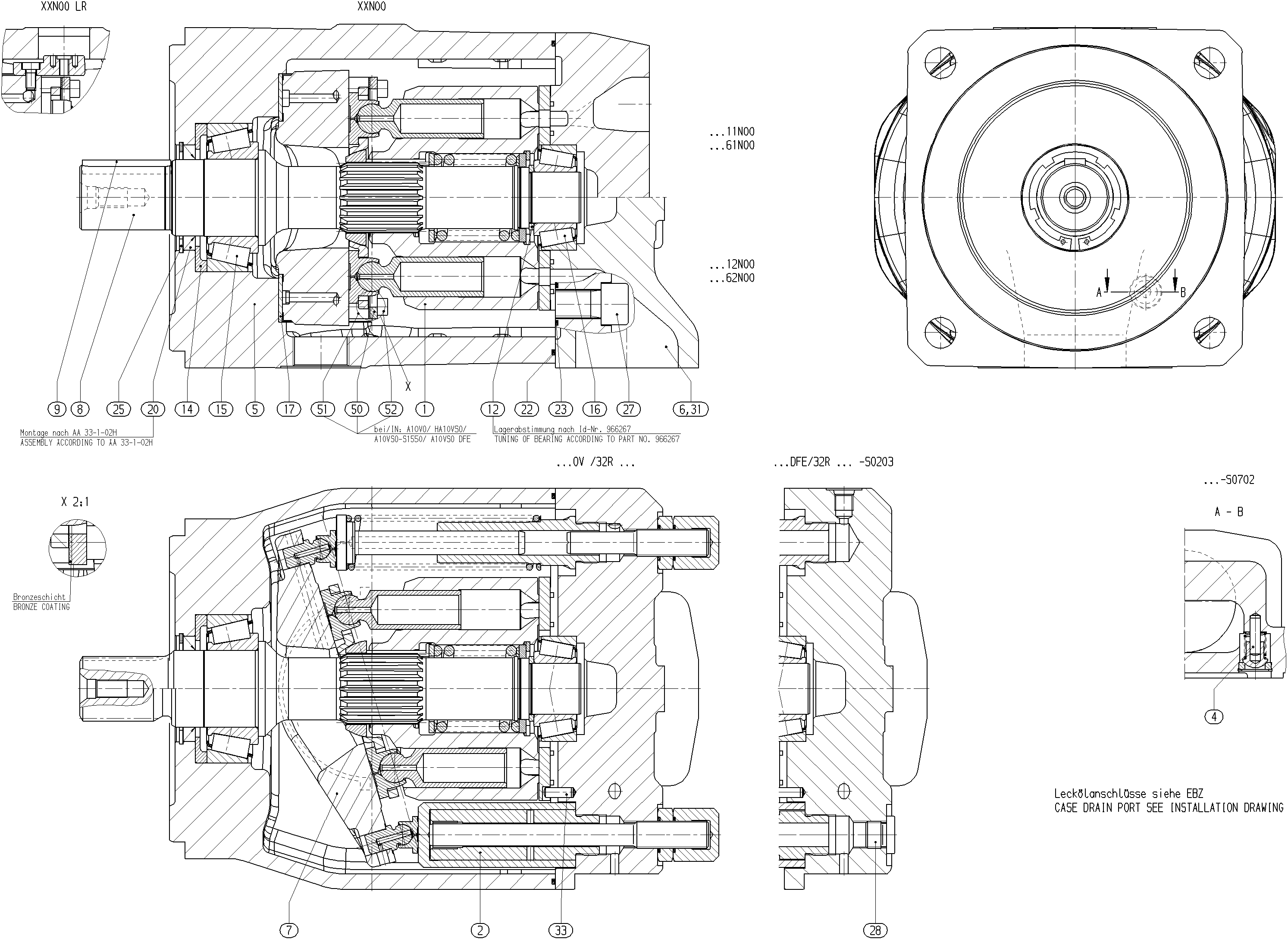

BASE UNITR902468734
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902466610 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902533508 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902463983 | PUMP HOUSING | 1 | ||
| R902466814 | CONNECTION PLATE | 1 | ||
| R902435871 | SWASH PLATE | 1 | ||
| R902468622 | DRIVE SHAFT | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R902421452 | STOP RING | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R909831179 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910912756 | O-RINGD | 1 | ||
| R913050578 | R-RINGD | 4 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902570108 | SEGMENT | 2 | ||
| R902432711 | SPACER SLEEVE | 4 | ||
| R902530616 | SOCKET HEAD CAP SCREW | 4 |
