Assembly

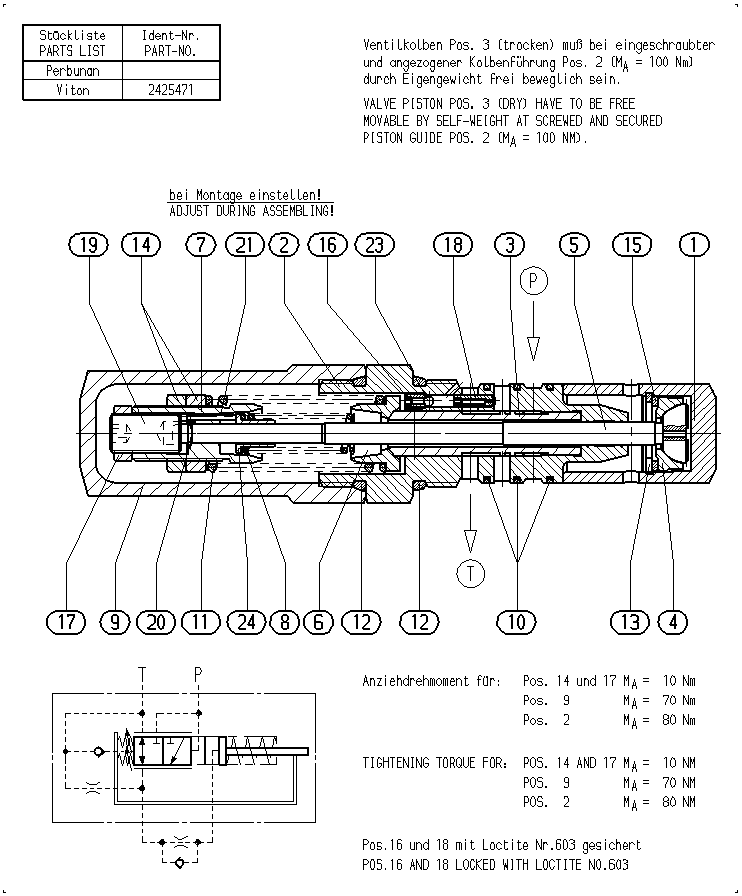

CONTROL VALVER902470663
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902470575 | ADJUSTING PISTON | 1 | ||
| R902425633 | PISTON GUIDE | 1 | ||
| R902410451 | VALVE SPOOL | 1 | ||
| R902412578 | SHIM | 1 | ||
| R902425258 | PISTON ROD | 1 | ||
| R902421880 | SPRING DISK | 1 | ||
| R902428760 | ADJUSTING SCREW | 1 | ||
| R902420236 | COMPRESSION SPRING | 1 | ||
| R902470551 | COVER | 1 | ||
| R902650529 | R-RING | 3 | ||
| R902420235 | COMPRESSION SPRING | 1 | ||
| R910965435 | O-RING | 2 | ||
| R902467735 | RETAINING RING | 1 | ||
| R902425208 | NUT | 2 | ||
| R902412605 | SUPPORTING DISC | 1 | ||
| R902418429 | VALVE SEAT | 1 | ||
| R902425213 | NUT | 1 | ||
| R902444546 | NOZZLE | 1 | ||
| R902425214 | SETSCREW | 1 | ||
| R902650530 | SNAP RING | 1 | ||
| R902428392 | PRESSURE PIN | 3 | ||
| R902650443 | BALL | 1 | ||
| R902431721 | SLEEVE | 1 |
