Assembly

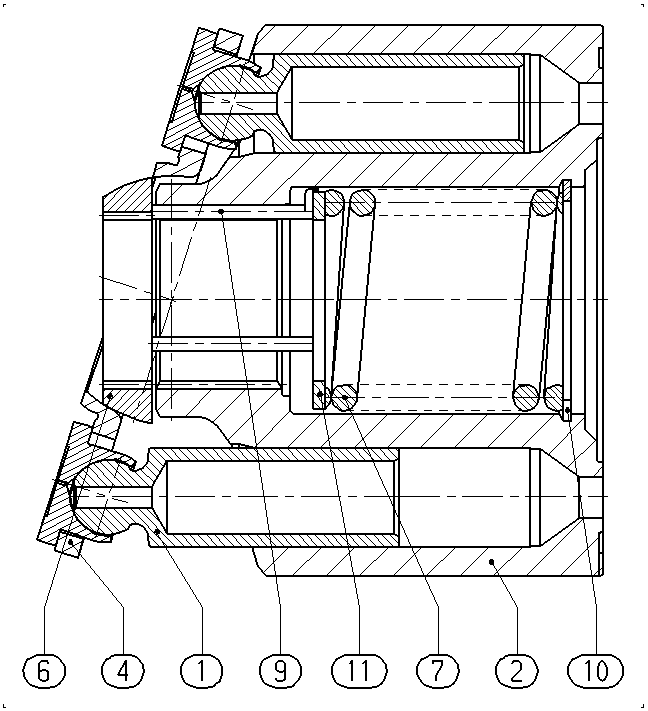

ROTARY GROUPR902470795
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902466891 | PISTON PAD | 9 | ||
| R902407211 | CYLINDER | 1 | ||
| R902445651 | RETAINING PLATE | 1 | ||
| R902443451 | RETAINING BALL | 1 | ||
| R910918171 | COMPRESSION SPRING | 1 | ||
| R910917728 | PRESSURE PIN | 3 | ||
| R910918189 | RETAINING RING | 1 | ||
| R902423609 | SUPPORTING DISC | 1 |
