Assembly

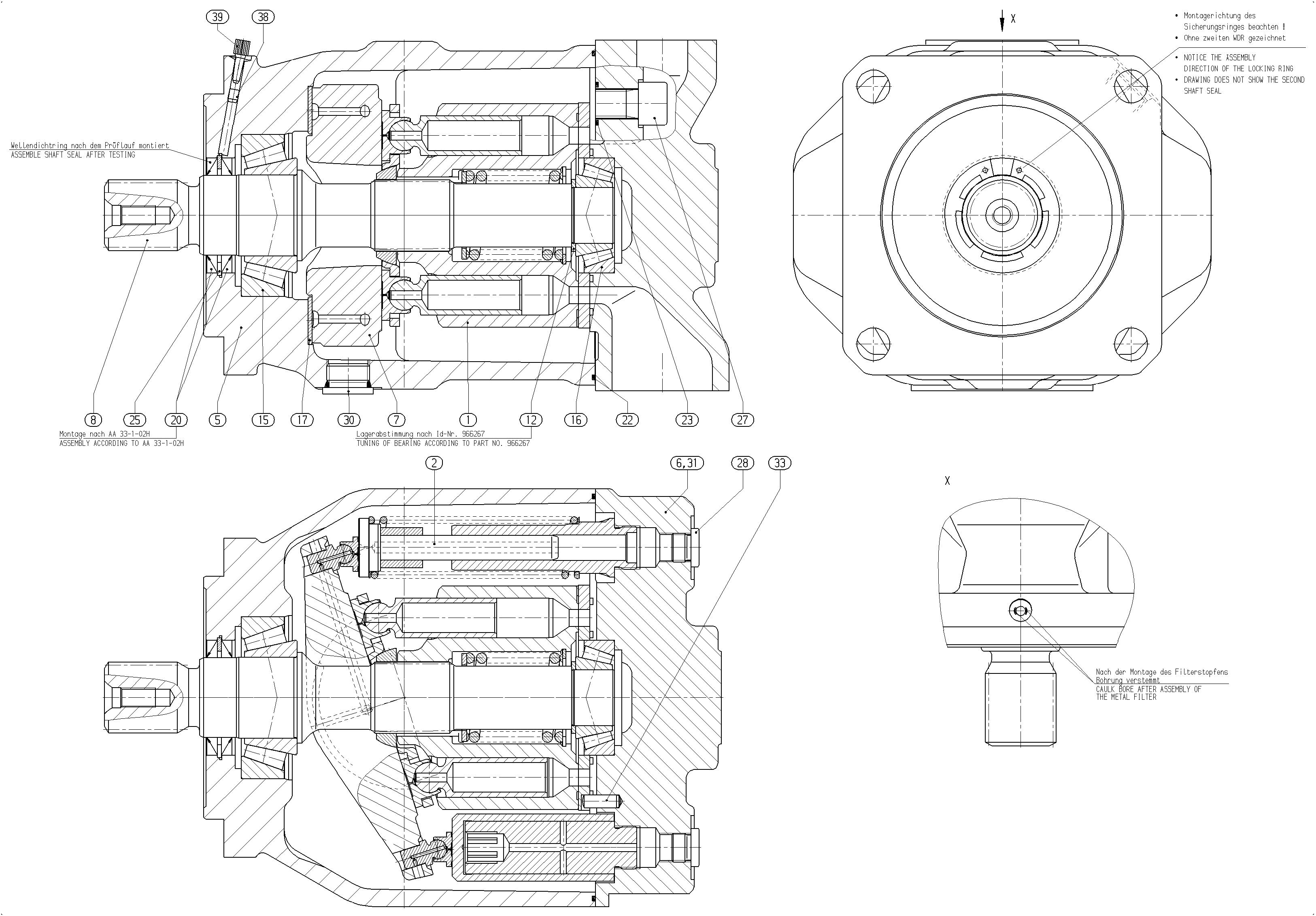

BASE UNITR902470797
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902470794 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910917597 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902434089 | PUMP HOUSING | 1 | ||
| R902534411 | CONNECTION PLATE | 1 | ||
| R902443217 | SWASH PLATE | 1 | ||
| R902434090 | DRIVE SHAFT | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| R910918203 | TAPERED-ROLLER BEARING | 1 | ||
| R910918201 | TAPERED-ROLLER BEARING | 1 | ||
| R910918174 | BEARING SHELL | 2 | ||
| R910978001 | SHAFT SEALING RINGD | 2 | ||
| R910930460 | O-RINGD | 1 | ||
| R913053033 | R-RINGD | 4 | ||
| R910941920 | RETAINING RING | 1 | ||
| R910659169 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909154480 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922017 | STRAIGHT PIN | 1 | ||
| R910970159 | PLUG | 1 | ||
| R910973909 | GUARD PLUG | 1 |
