Assembly

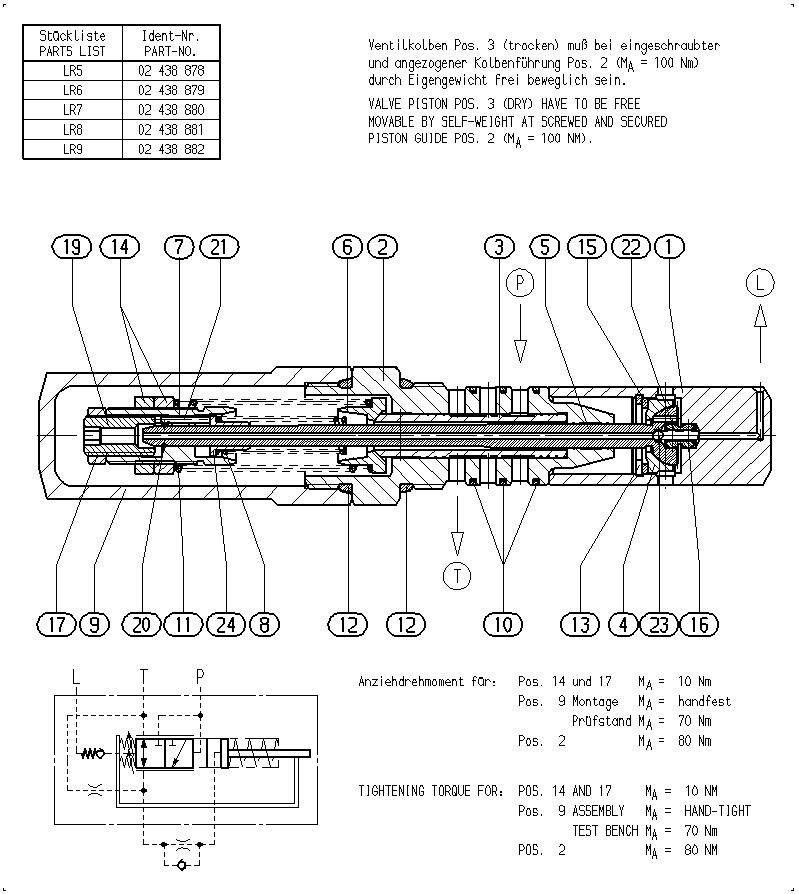

CONTROL VALVER902471492
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902471247 | ADJUSTING PISTON | 1 | ||
| R902437744 | PISTON GUIDE | 1 | ||
| R902437743 | VALVE SPOOL | 1 | ||
| R902412578 | SHIM | 1 | ||
| R902446519 | PISTON ROD | 1 | ||
| R902421880 | SPRING DISK | 1 | ||
| R902428760 | ADJUSTING SCREW | 1 | ||
| R902436769 | COMPRESSION SPRING | 1 | ||
| R902469931 | COVER | 1 | ||
| R902650529 | R-RING | 3 | ||
| R902431903 | COMPRESSION SPRING | 1 | ||
| R910965435 | O-RING | 2 | ||
| R902467735 | RETAINING RING | 1 | ||
| R902425208 | NUT | 2 | ||
| R902412605 | SUPPORTING DISC | 1 | ||
| R902433203 | CONNECTOR | 1 | ||
| R902425213 | NUT | 1 | ||
| R902447218 | SETSCREW | 1 | ||
| R902650530 | SNAP RING | 1 | ||
| R902428392 | PRESSURE PIN | 3 | ||
| R902434651 | COMPRESSION SPRING | 1 | ||
| R902650443 | BALL | 1 | ||
| R902431721 | SLEEVE | 1 |
