Assembly

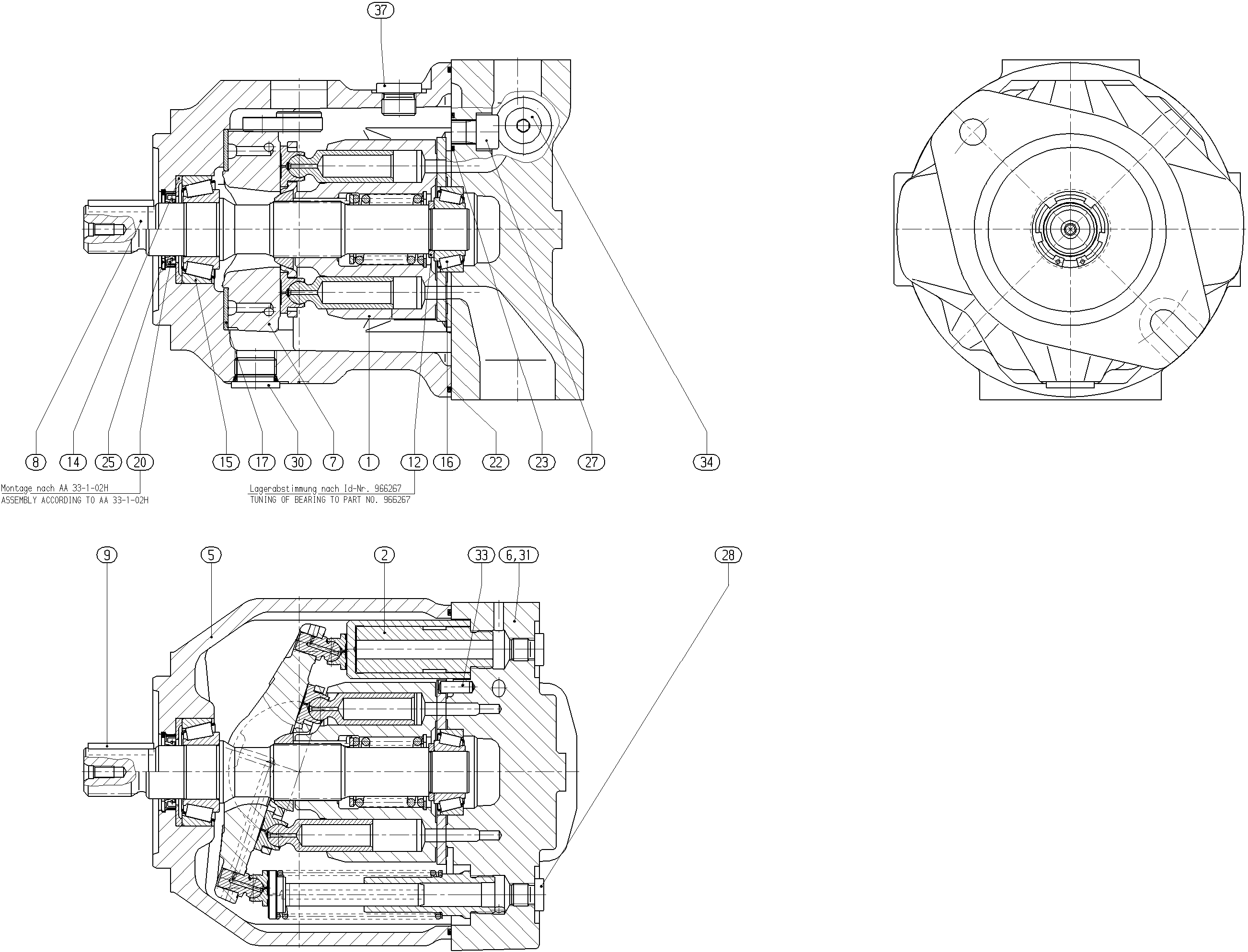

BASE UNITR902471498
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902471499 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910926451 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902546040 | PUMP HOUSING | 1 | ||
| R902538436 | CONNECTION PLATE | 1 | ||
| R910961031 | SWASH PLATE | 1 | ||
| R902408467 | DRIVE SHAFT | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910987963 | STOP RING | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910900198 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| R910793698 | O-RINGD | 1 | ||
| R913052111 | R-RINGD | 4 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156650 | SCREW PLUGD | 2 | ||
| R909156654 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R913011609 | SCREW PLUG | 2 | ||
| R909156651 | SCREW PLUG | 1 |
