Assembly
BASE UNITR902471758

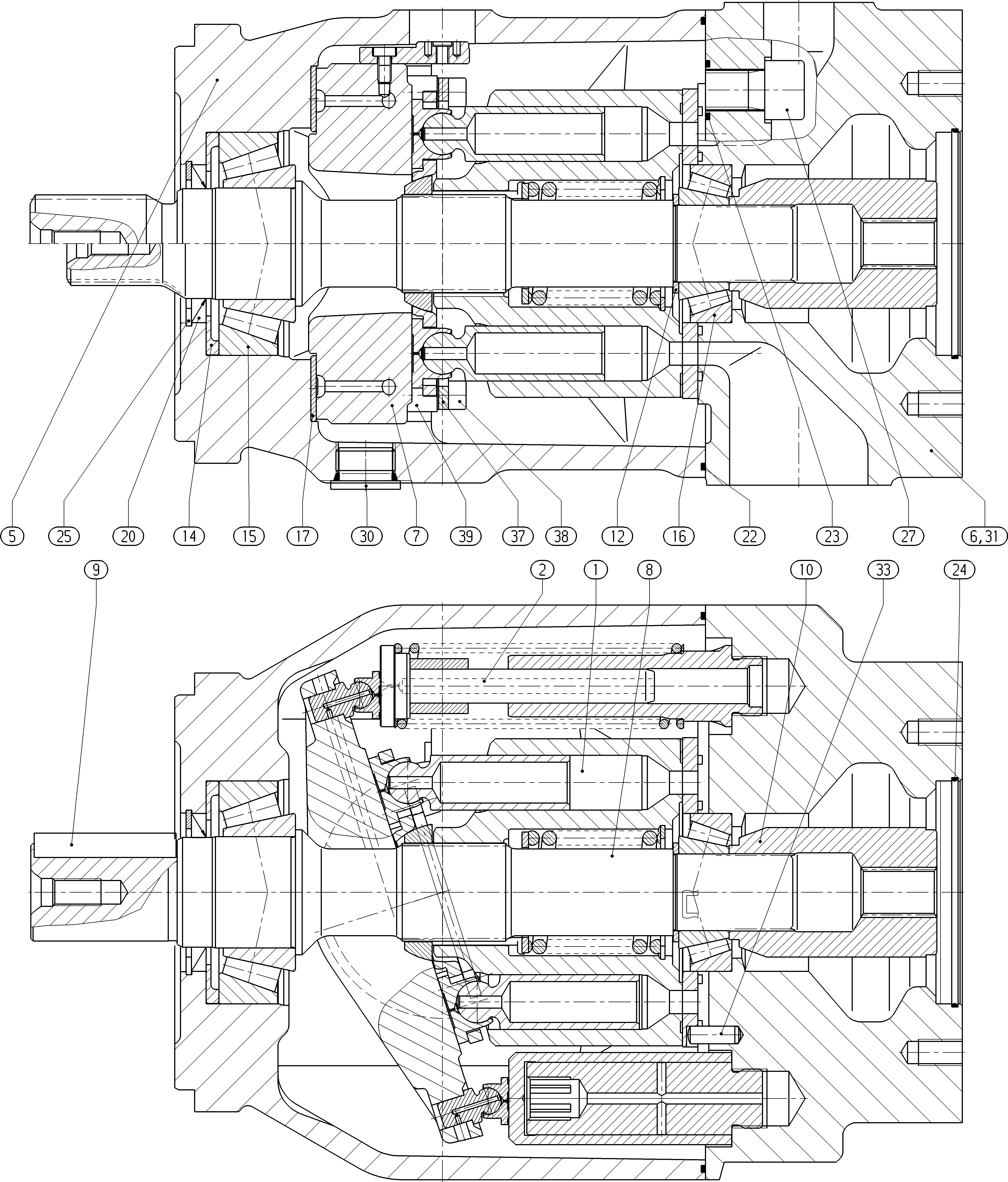

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910948999 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910917597 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910988056 | PUMP HOUSING | 1 | ||
| R910991871 | CONNECTION PLATE | 1 | ||
| R902409622 | SWASH PLATE | 1 | ||
| R910987710 | DRIVE SHAFT | 1 | ||
| R902436106 | SPLINED COUPLING | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| R910988055 | STOP RING | 1 | ||
| R910918203 | TAPERED-ROLLER BEARING | 1 | ||
| R910918201 | TAPERED-ROLLER BEARING | 1 | ||
| R910918174 | BEARING SHELL | 2 | ||
| R910978001 | SHAFT SEALING RINGD | 1 | ||
| R910930461 | O-RINGD | 1 | ||
| R913053032 | R-RINGD | 4 | ||
| R910631175 | O-RINGD | 1 | ||
| R910941920 | RETAINING RING | 1 | ||
| R910659169 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967351 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922017 | STRAIGHT PIN | 1 | ||
| R902570109 | SEGMENT | 2 | ||
| R902530618 | SOCKET HEAD CAP SCREW | 4 | ||
| R902408275 | SPACER SLEEVE | 4 |
