Assembly

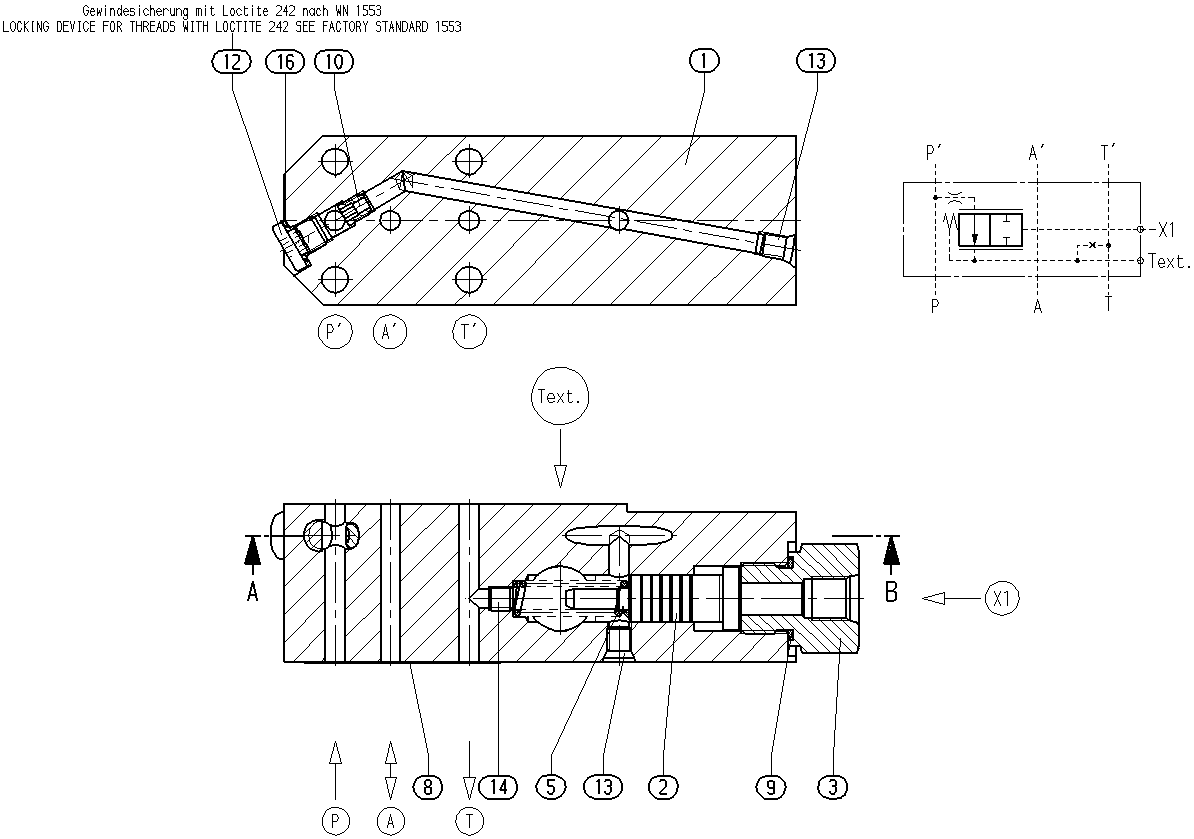

FLUSHING VALVER902472289
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902472030 | FLUSHING VALVE HOUSING | 1 | ||
| R902472199 | FLUSHING PISTON | 1 | ||
| R910967529 | REDUCTION THREADED JOINT | 1 | ||
| R910074535 | COMPRESSION SPRING | 1 | ||
| R902434482 | SEAL | 1 | ||
| R910744603 | SEAL RING | 1 | ||
| R910967551 | NOZZLE | 1 | ||
| R910933812 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910100943 | SETSCREW | 1 | ||
| R909152493 | SEAL RING | 1 |
