Assembly

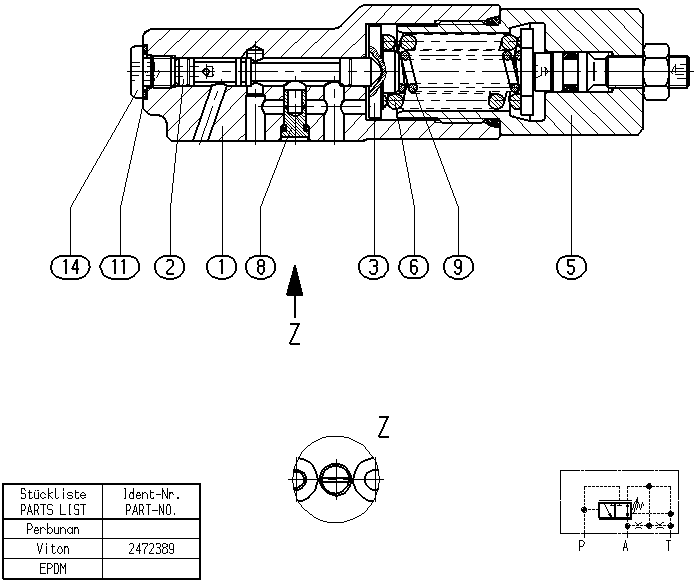

CONTROL VALVER902472389
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902464311 | VALVE HOUSING | 1 | ||
| R910991469 | VALVE SPOOL | 1 | ||
| R902449500 | SPRING DISK | 1 | ||
| R902451580 | SERVO UNIT Assembly parts list →L | 1 | ||
| R910707031 | COMPRESSION SPRING | 1 | ||
| R902451582 | ORIFICE Assembly parts list →L | 1 | ||
| R910911509 | COMPRESSION SPRING | 1 | ||
| R910642827 | BONDED SEAL RINGD | 1 | ||
| R910933812 | SCREW PLUG | 1 |
