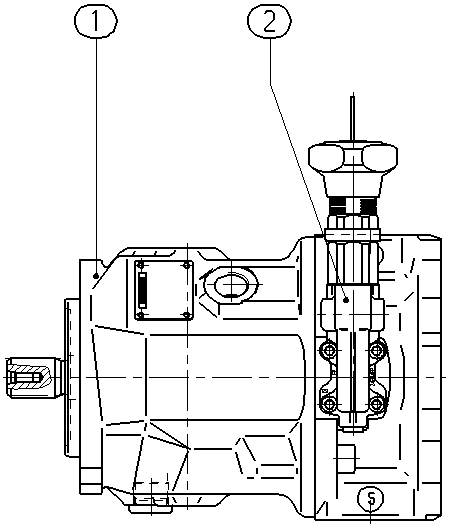

Assembly
AXIAL-PISTON PUMPR902473048
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902473072 | BASE UNIT Assembly parts list →L | 1 | ||
| R902468495 | CONTROL VALVE Assembly parts list →L | 1 | ||
| 70 | R902421945 | SHIPPING PROTECTION | 1 | |
| 71 | R902421948 | SHIPPING PROTECTION | 1 | |
| 72 | R902602011 | SEAL SCREW | 1 | |
| 74 | R902601166 | FLANGE COVER | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
