Assembly

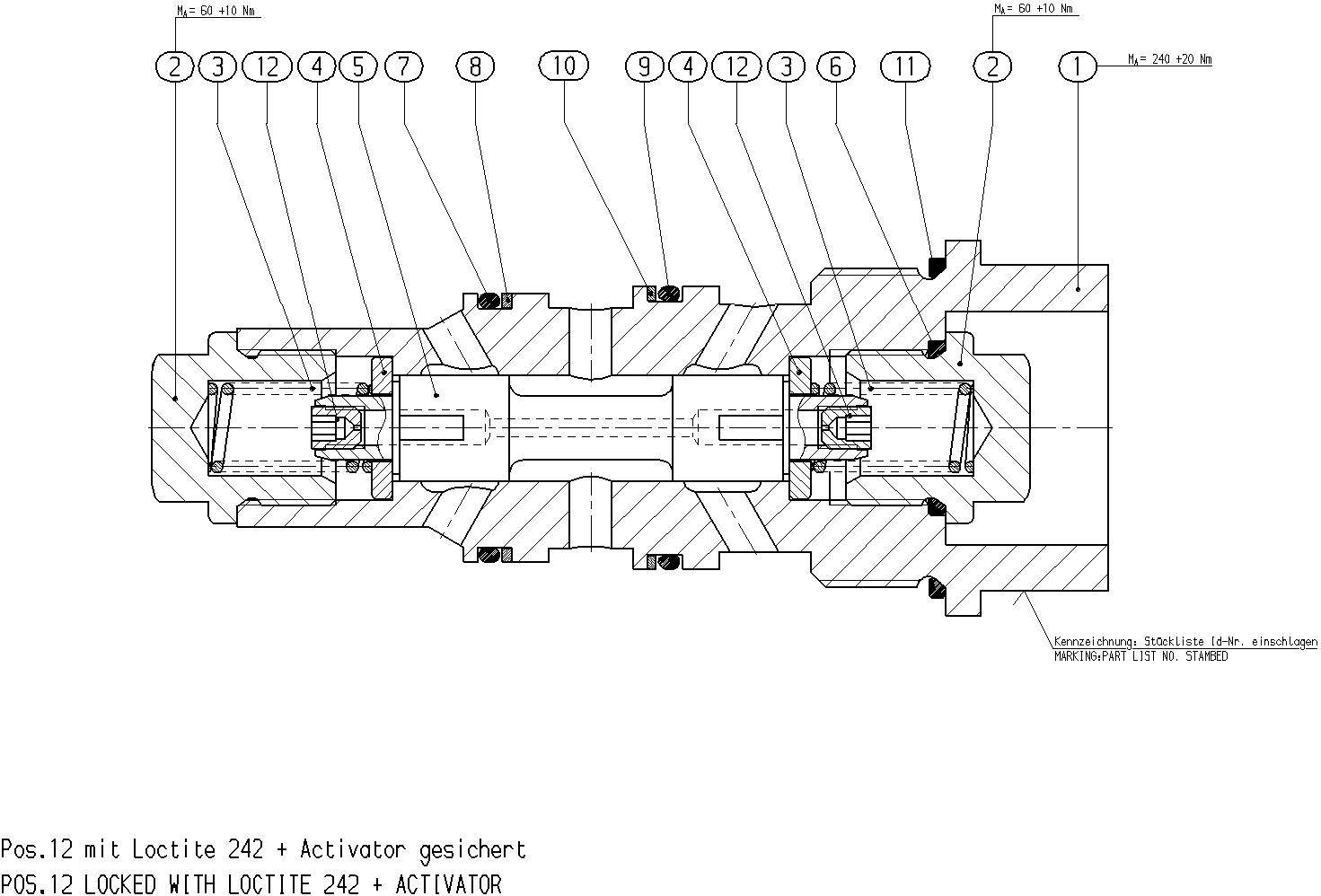

FLUSHING VALVER902473633
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910908841 | VALVE INSERT | 1 | ||
| R910801819 | SCREW PLUG | 2 | ||
| R910801787 | COMPRESSION SPRING | 2 | ||
| R910801818 | WASHER | 2 | ||
| R902472506 | FLUSHING PISTON | 1 | ||
| R910149624 | O-RINGD | 1 | ||
| R910908845 | O-RINGD | 1 | ||
| R910908844 | BACKUP RINGD | 1 | ||
| R910111406 | O-RINGD | 1 | ||
| R910908842 | BACKUP RINGD | 1 | ||
| R910977079 | O-RINGD | 1 | ||
| R910436941 | NOZZLE | 2 |
