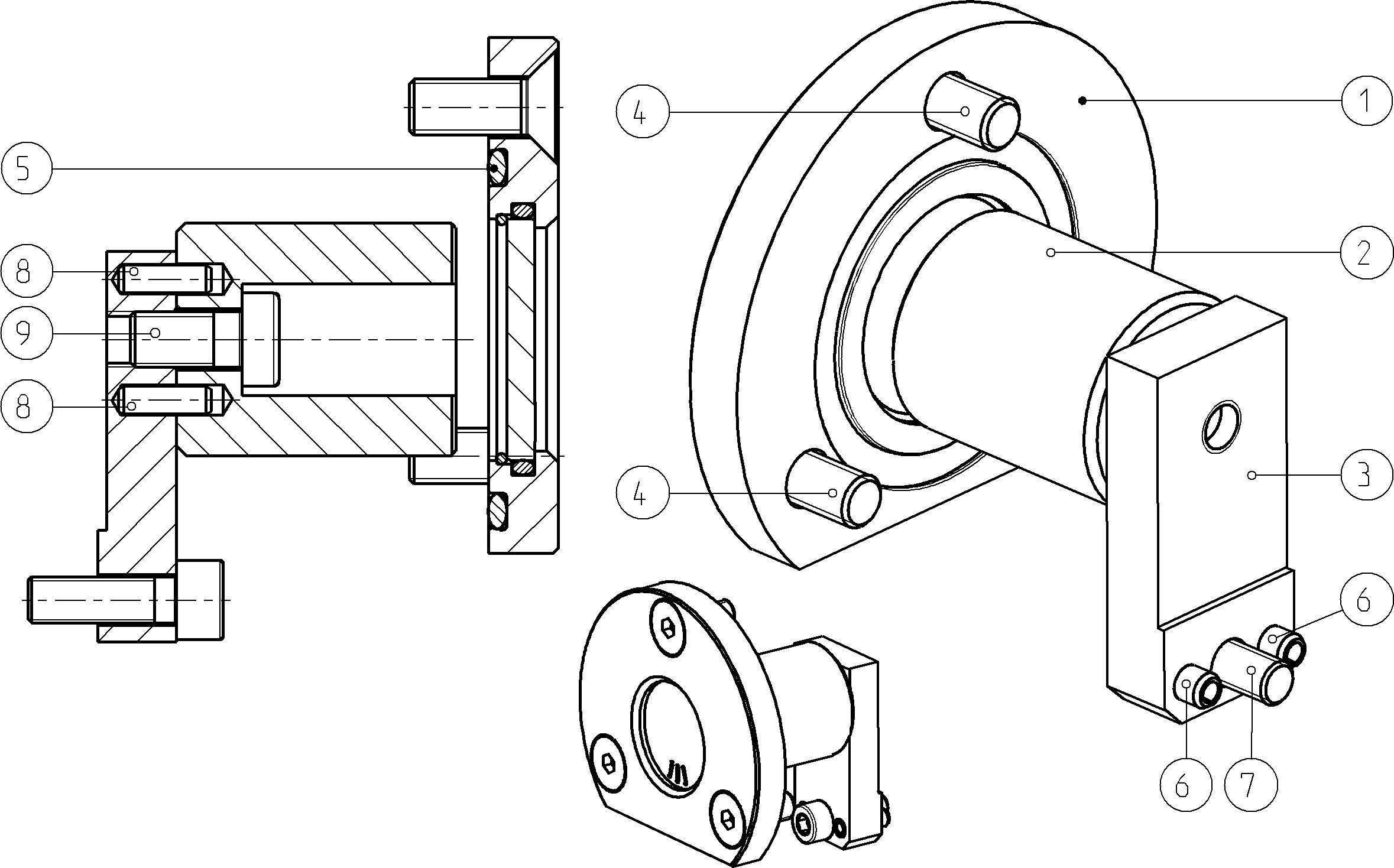

Assembly
DISPLAYR902473989
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902519774 | FLANGE | 1 | ||
| R902477767 | POINTER | 1 | ||
| R902473988 | ADAPTER PLATE | 1 | ||
| R902572000 | COUNTERSUNK-HEAD SCREW | 3 | ||
| R910977815 | O-RING | 1 | ||
| R910106739 | SLOTTED SPRING PIN | 2 | ||
| R910109223 | SOCKET HEAD CAP SCREW | 1 | ||
| R909152074 | SLOTTED SPRING PIN | 2 | ||
| R910941728 | SOCKET HEAD CAP SCREW | 1 |
