Assembly

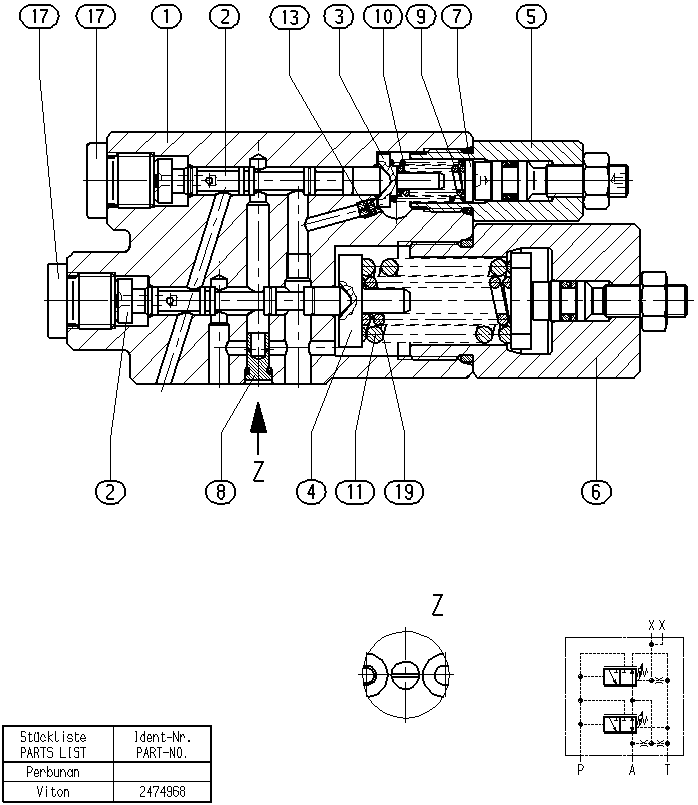

CONTROL VALVER902474968
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902474972 | VALVE HOUSING | 1 | ||
| R902447807 | VALVE SPOOL | 2 | ||
| R910929875 | SPRING DISK | 1 | ||
| R902447810 | SPRING DISK | 1 | ||
| R902451578 | SERVO UNIT Assembly parts list →L | 1 | ||
| R902456405 | SERVO UNIT Assembly parts list →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902451582 | ORIFICE Assembly parts list →L | 1 | ||
| R910924695 | COMPRESSION SPRING | 1 | ||
| R910924709 | COMPRESSION SPRING | 1 | ||
| R910771139 | COMPRESSION SPRING | 1 | ||
| R910914740 | NOZZLE | 1 | ||
| R909153930 | SCREW PLUG | 2 | ||
| R910771147 | COMPRESSION SPRING | 1 |
