Assembly

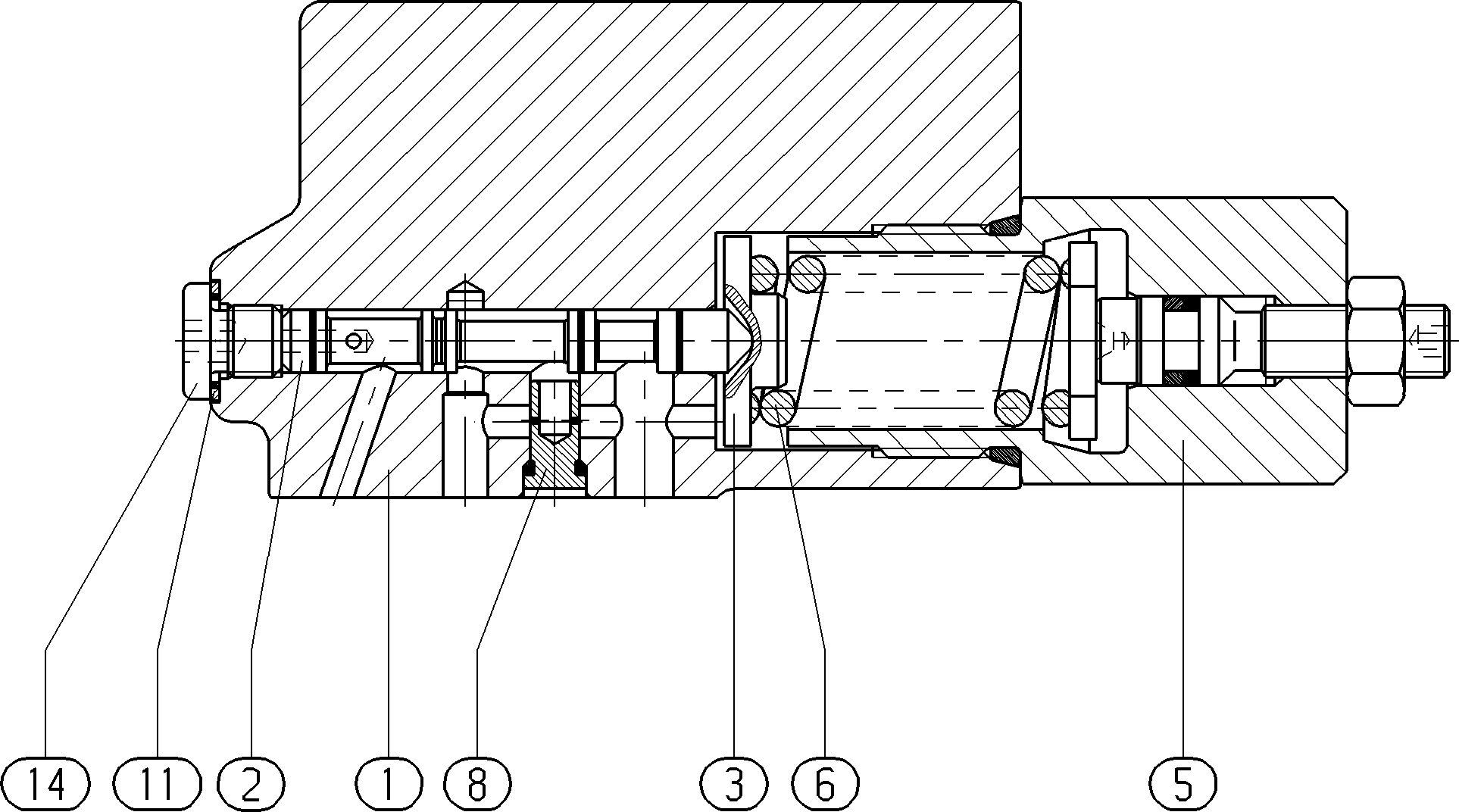

CONTROL VALVER902475755
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902453109 | VALVE HOUSING | 1 | ||
| R910900311 | VALVE SPOOL | 1 | ||
| R910707023 | SPRING DISK | 1 | ||
| R902451580 | SERVO UNIT Assembly parts list →L | 1 | ||
| R902473418 | COMPRESSION SPRING | 1 | ||
| R902451582 | ORIFICE Assembly parts list →L | 1 | ||
| R910642827 | BONDED SEAL RINGD | 1 | ||
| R910933812 | SCREW PLUG | 1 |
