Assembly

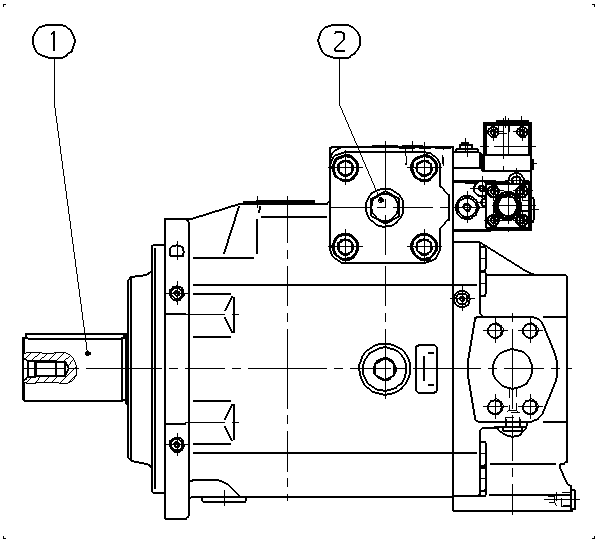

AXIAL-PISTON PUMPR902476021
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902476022 | BASE UNIT Assembly parts list →L | 1 | ||
| R902418466 | REGULATOR Assembly parts list →L | 1 | ||
| 61 | R902805710 | SHIPPING PROTECTION | 1 | |
| 62 | R902602207 | SEAL SCREW | 1 | |
| 63 | R902564147 | SHIPPING PROTECTION | 1 | |
| 71 | R902538905 | FLANGE COVER Assembly parts list →L | 1 | |
| 82 | R902602008 | SEAL SCREW | 2 |
