Assembly

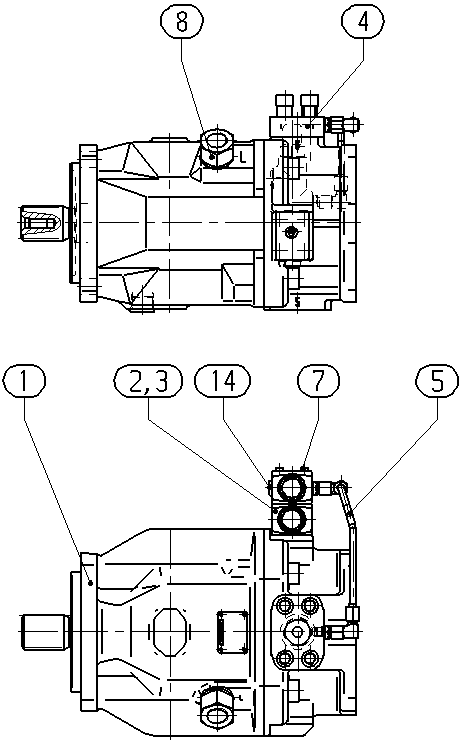

AXIAL-PISTON PUMPR902476650
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902477054 | BASE UNIT Assembly parts list →L | 1 | ||
| R910924992 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910924990 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902474202 | ORIFICE FLANGE Assembly parts list →L | 1 | ||
| R902501699 | PIPING Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910910741 | ADAPTER Assembly parts list →L | 1 | ||
| R909153930 | SCREW PLUG | 1 |
