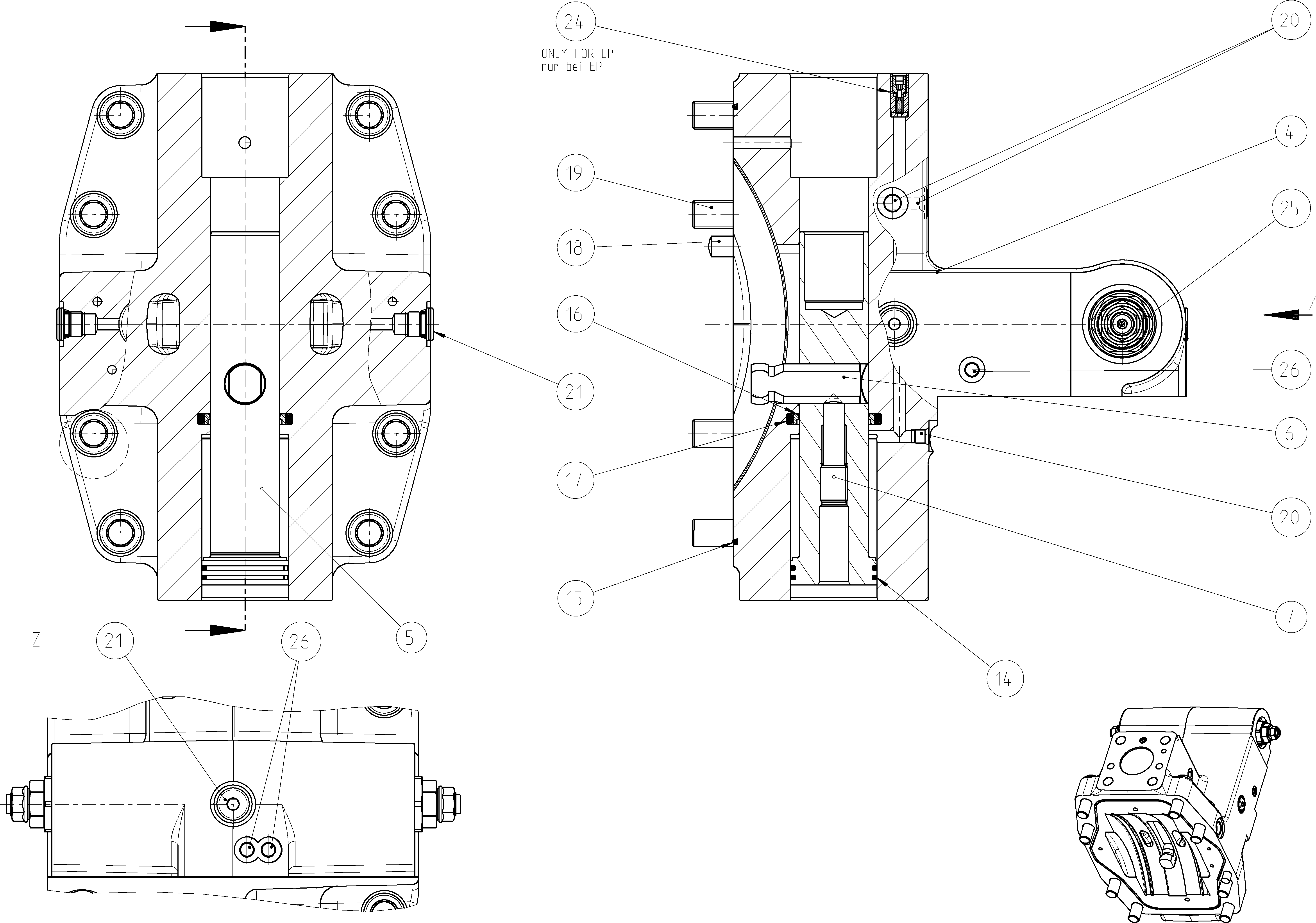

Assembly
COVER PLATER902477060
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902471913 | COVER PLATE Assembly parts list →L | 1 | ||
| R902477242 | POSITIONING PISTON | 1 | ||
| R902413010 | POSITIONING STUD | 1 | ||
| R902475687 | SETSCREW | 1 | ||
| R910802013 | RECTANGULAR RING | 2 | ||
| R910917440 | O-RING | 1 | ||
| R910907799 | ROD SEAL | 1 | ||
| R910973147 | O-RING | 1 | ||
| R910910938 | STRAIGHT PIN | 2 | ||
| R910126411 | SOCKET HEAD CAP SCREW | 8 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831482 | SCREW PLUG | 3 | ||
| R902555521 | FILTER INSERT | 1 | ||
| R902479597 | DELIVERY-VALVE ASSEMBLY | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 |
