Assembly

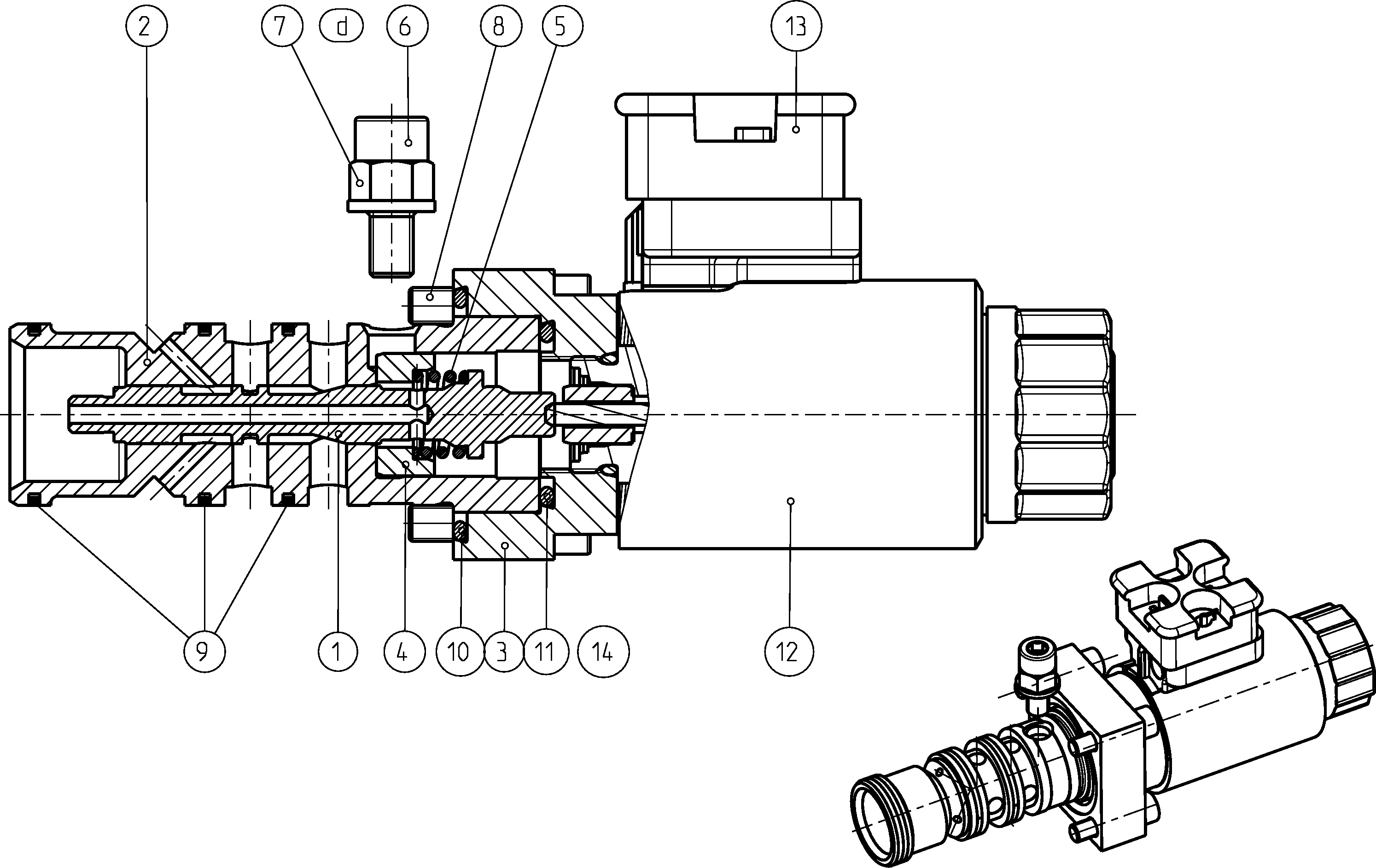

CONTROL ELEMENTR902479782
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902471910 | VALVE SPOOL | 1 | ||
| R902471909 | CONTROL SLEEVE | 1 | ||
| R902568264 | INTERMEDIATE PIECE | 1 | ||
| R902479909 | SPRING DISK | 1 | ||
| R902468670 | COMPRESSION SPRING | 1 | ||
| R910109282 | SOCKET HEAD CAP SCREW | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| R910913349 | SOCKET HEAD CAP SCREW | 4 | ||
| R902562584 | R-RING | 3 | ||
| R910973148 | O-RING | 1 | ||
| R910530352 | O-RING | 1 | ||
| R902602670 | SWITCHING SOLENOID | 1 | ||
| R900183135 | PROTECTIVE CAP | 1 | ||
| R902513282 | SLEEVE | 1 |
