Assembly

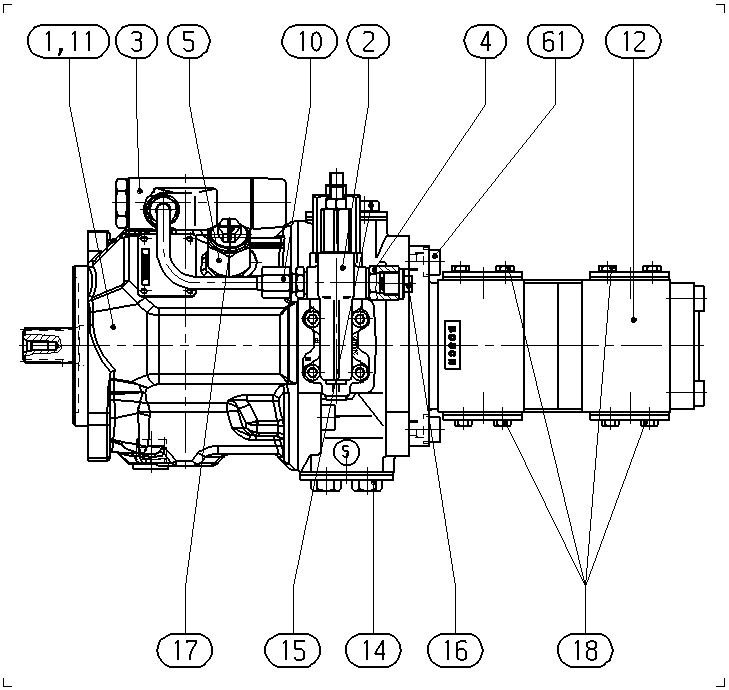

AXIAL-PISTON PUMPR902481735
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902451945 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450439 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910932943 | ADAPTER Assembly parts list →L | 1 | ||
| R910929857 | ADAPTER Assembly parts list →L | 1 | ||
| R910948341 | PIPING Assembly parts list →L | 1 | ||
| R902564643 | POWER DIAGRAM | 1 | ||
| 0510765055 | HYDRAULIC GEAR PUMPL | 1 | ||
| R902400574 | FLANGE COVER | 1 | ||
| R902400582 | FLANGE COVER | 1 | ||
| R902602008 | SEAL SCREW | 1 | ||
| R902602010 | SEAL SCREW | 1 | ||
| R902448945 | FLANGE COVER | 4 | ||
| R910109606 | SOCKET HEAD CAP SCREW | 2 |
