Assembly

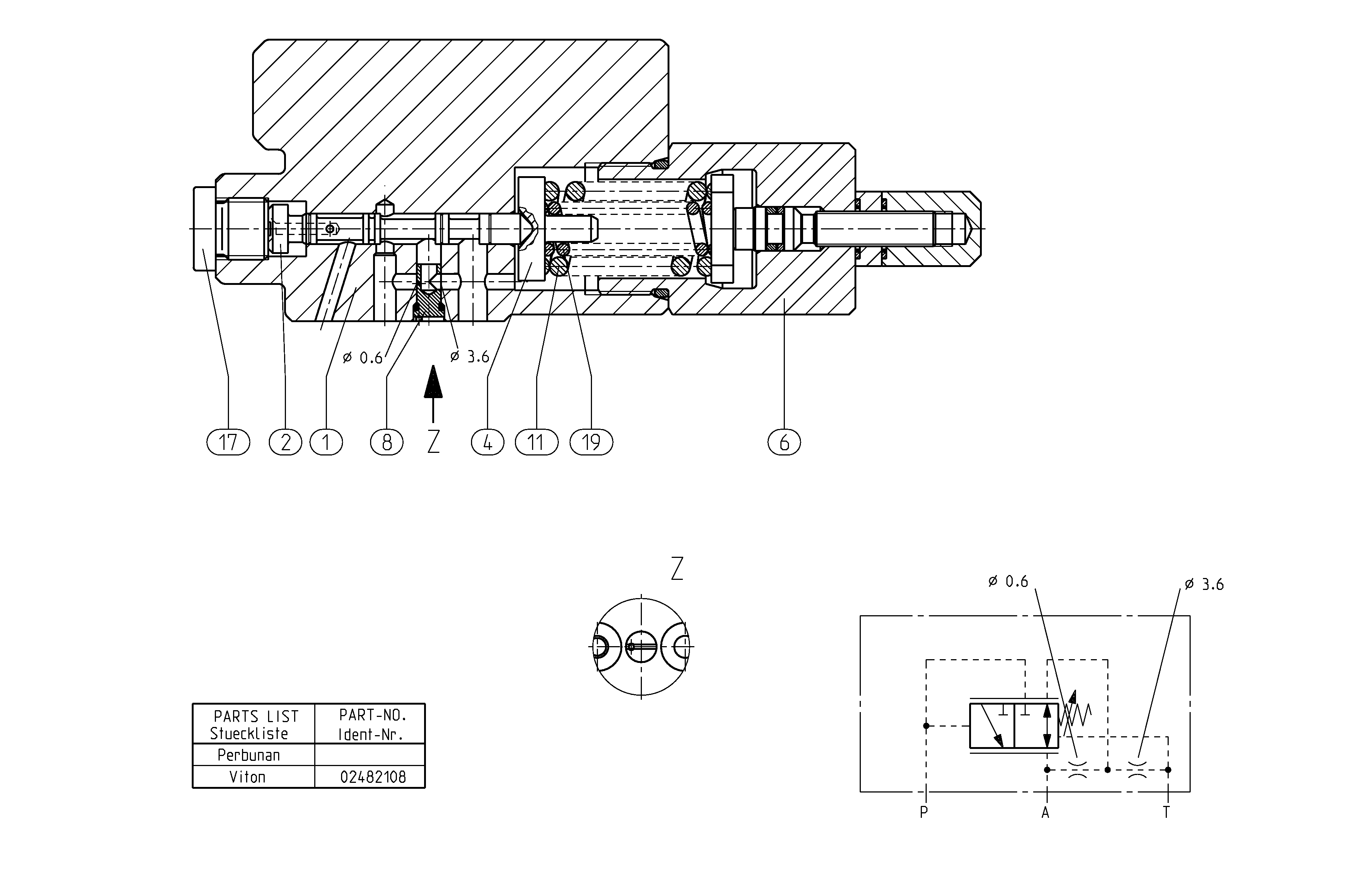

CONTROL VALVER902482108
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902473088 | VALVE HOUSING | 1 | ||
| R902447807 | VALVE SPOOL | 1 | ||
| R902447810 | SPRING DISK | 1 | ||
| R902477676 | SERVO UNIT Assembly parts list →L | 1 | ||
| R902473123 | ORIFICE | 1 | ||
| R910771139 | COMPRESSION SPRING | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R910771147 | COMPRESSION SPRING | 1 |
