Assembly

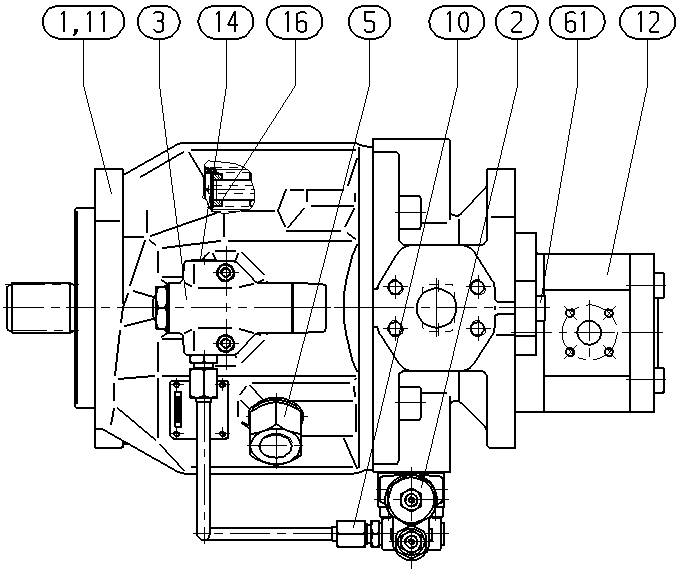

AXIAL-PISTON PUMPR902484422
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902432122 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451761 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910934572 | ADAPTER Assembly parts list →L | 1 | ||
| R910963807 | PIPING Assembly parts list →L | 1 | ||
| R910926932 | POWER DIAGRAM | 1 | ||
| 0510525072 | HYDRAULIC GEAR PUMPL | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R910918065 | SIDE MARKER RING | 1 | ||
| R910109606 | SOCKET HEAD CAP SCREW | 2 |
