Assembly

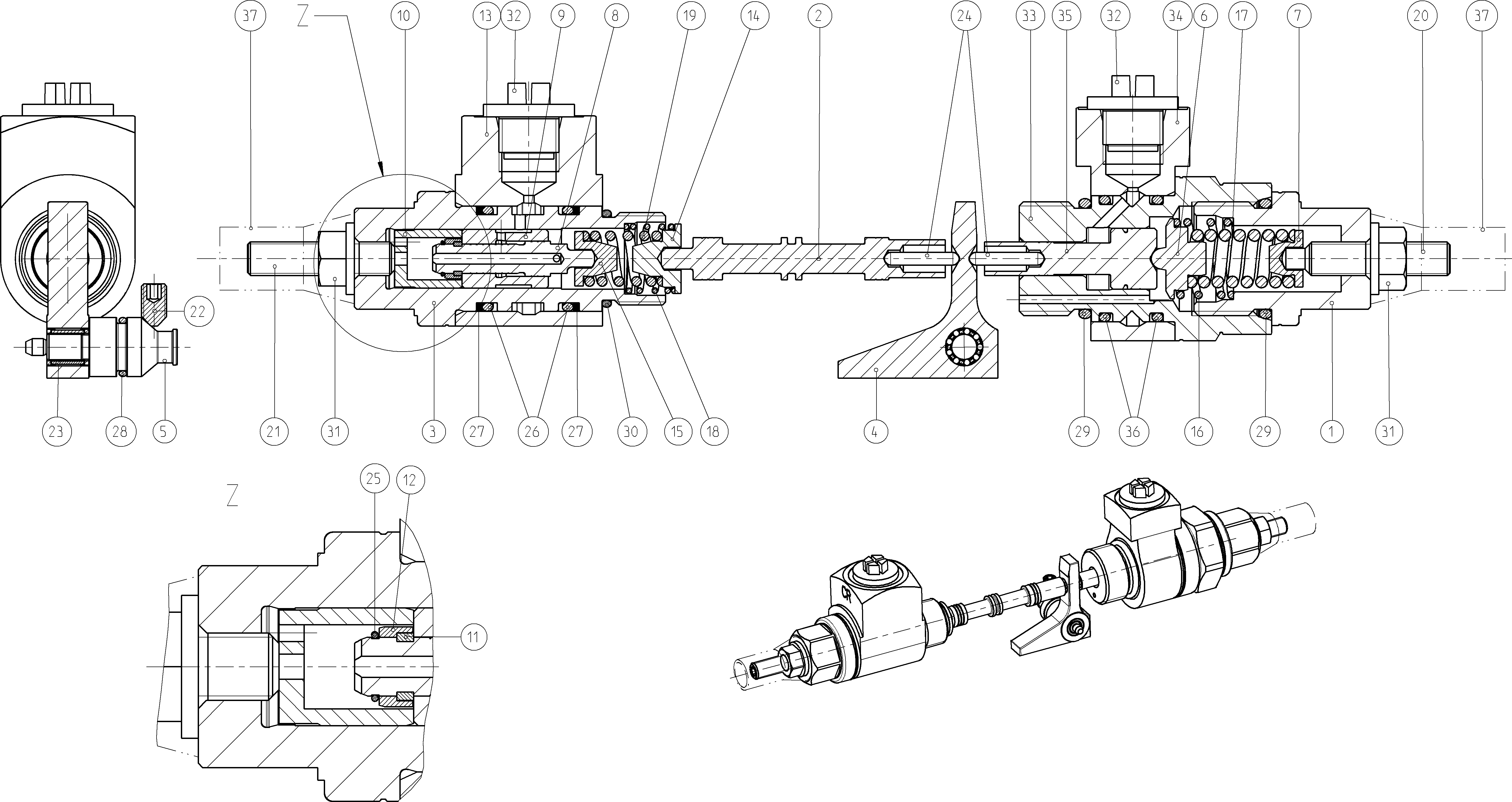

CONTROL ELEMENTR902484646
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902484019 | SCREW PLUG | 1 | ||
| R902468036 | VALVE SPOOL | 1 | ||
| R902473059 | THREADED PART | 1 | ||
| R902470772 | ANGLE LEVER | 1 | ||
| R902489980 | BEARING BOLT | 1 | ||
| R902484021 | SPRING DISK | 1 | ||
| R902484020 | SPRING DISK | 1 | ||
| R902485648 | DIFFERENTIAL PISTON | 1 | ||
| R902485649 | CONTROL SLEEVE | 1 | ||
| R902473062 | BUSHING | 1 | ||
| R902025204 | STOP RING | 1 | ||
| R902025205 | RETAINING RING | 1 | ||
| R902541166 | CONNECTING PIECE | 1 | ||
| R902562647 | SPRING DISK | 1 | ||
| R902562646 | SPRING DISK | 1 | ||
| R902484018 | COMPRESSION SPRING | 1 | ||
| R902484016 | COMPRESSION SPRING | 1 | ||
| R902484026 | COMPRESSION SPRING | 1 | ||
| R902562561 | COMPRESSION SPRING | 1 | ||
| R902548795 | SETSCREW | 1 | ||
| R902475004 | SETSCREW | 1 | ||
| R910117862 | SETSCREW | 1 | ||
| R902650965 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R910903133 | NEEDLE-ROLLER | 2 | ||
| R909157090 | SNAP RING | 1 | ||
| R910530352 | O-RING | 2 | ||
| R913004199 | BACKUP RING | 2 | ||
| R909157915 | O-RING | 1 | ||
| R909830868 | O-RING | 2 | ||
| R902600738 | O-RING | 1 | ||
| R910783307 | DUMMY | 2 | ||
| R902602015 | SEAL SCREW | 2 | ||
| R902485650 | THREADED PART | 1 | ||
| R902541161 | CONNECTING PIECE | 1 | ||
| R902485651 | DIFFERENTIAL PISTON | 1 | ||
| R910934357 | O-RING | 2 | ||
| R909154494 | SAFETY CAP | 2 | ||
| 99 | R902564856 | REPAIR KIT Assembly parts list →L | 1 |
