Assembly

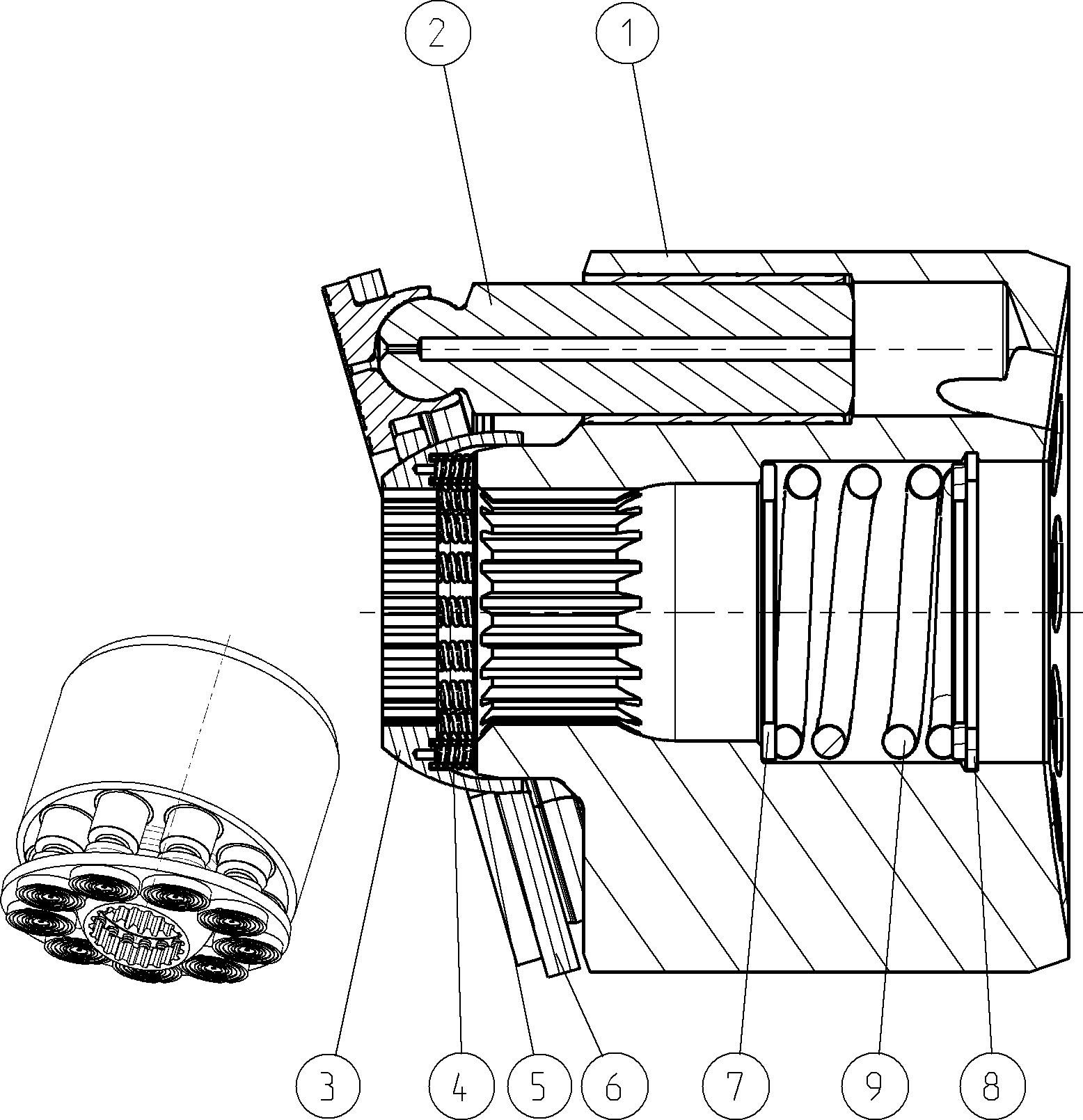

ROTARY GROUPR902485026
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902485028 | CYLINDER | 1 | ||
| R902485033 | PISTON PAD | 9 | ||
| R902485036 | RETAINING BALL | 1 | ||
| R902485040 | ADJUSTMENT SHIM | 2 | ||
| R902562569 | RETAINING PLATE | 1 | ||
| R902485039 | WASHER | 2 | ||
| R910106003 | RETAINING RING | 1 | ||
| R902485041 | COMPRESSION SPRING | 1 |
