Assembly

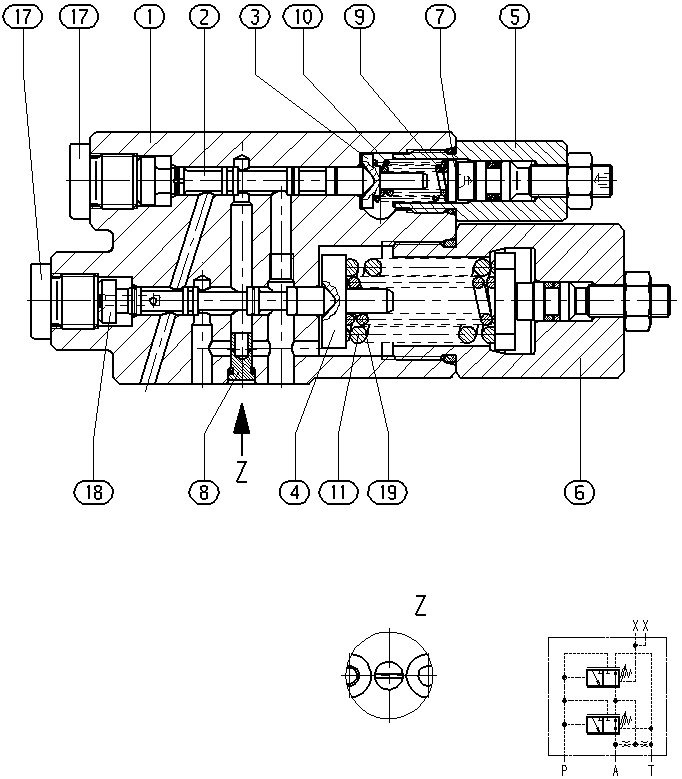

CONTROL VALVER902486158
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902466252 | VALVE HOUSING | 1 | ||
| R902466253 | VALVE SPOOL | 1 | ||
| R910929875 | SPRING DISK | 1 | ||
| R902447810 | SPRING DISK | 1 | ||
| R902484868 | SERVO UNIT Assembly parts list →L | 1 | ||
| R902486156 | SERVO UNIT Assembly parts list →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902468822 | ORIFICE | 1 | ||
| R910924695 | COMPRESSION SPRING | 1 | ||
| R910924709 | COMPRESSION SPRING | 1 | ||
| R910771139 | COMPRESSION SPRING | 1 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R902447807 | VALVE SPOOL | 1 | ||
| R910771147 | COMPRESSION SPRING | 1 |
