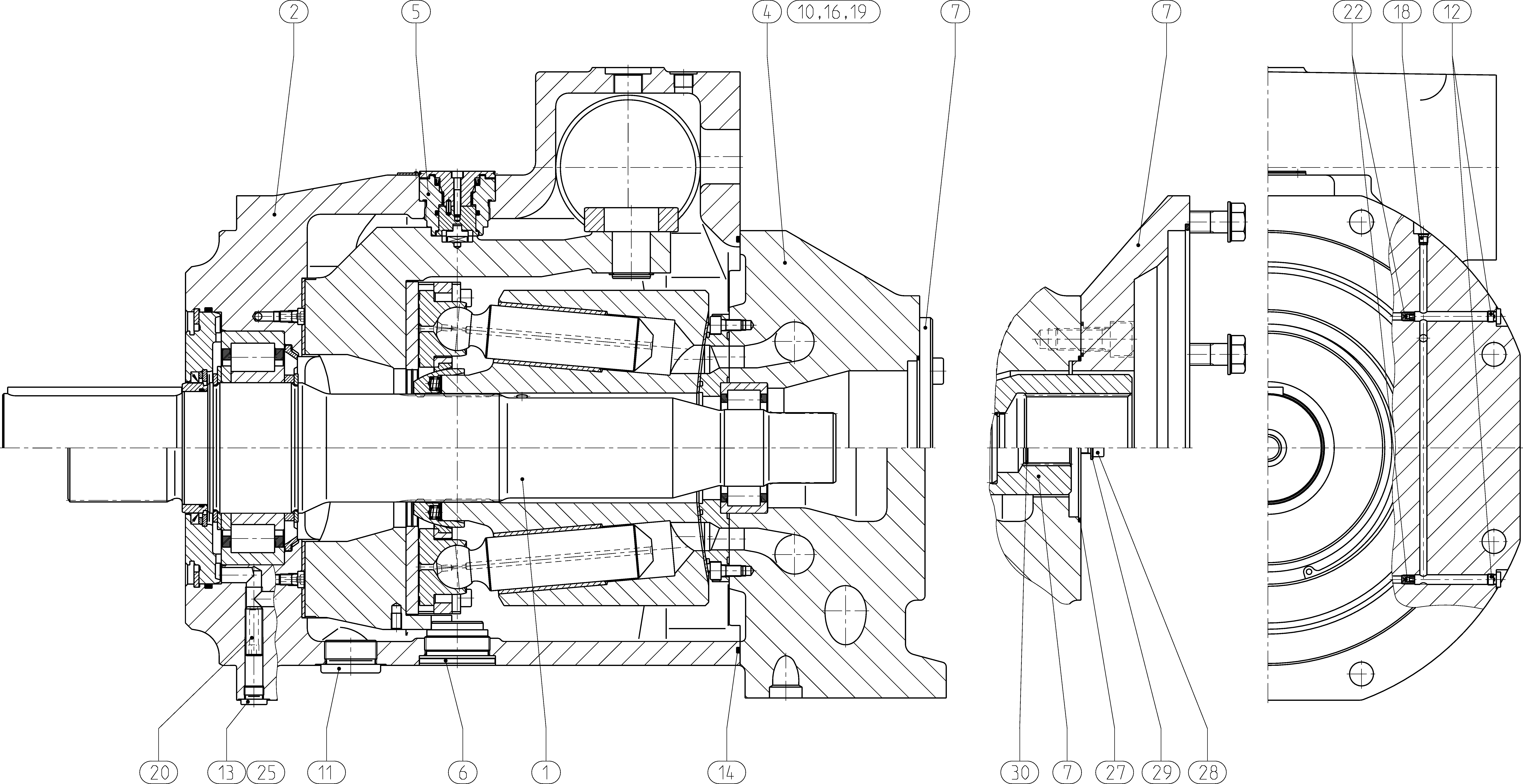

Assembly
BASE UNITR902486845
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910984654 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910978485 | PUMP HOUSING | 1 | ||
| R910984656 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902544276 | INDICATING DEVICE | 1 | ||
| R902544277 | STUD BOLT Assembly parts list →L | 1 | ||
| R902486524 | SPLINED COUPLING | 1 | ||
| R910119172 | SOCKET HEAD CAP SCREW | 8 | ||
| R910941726 | SCREW PLUG | 3 | ||
| R909153364 | SCREW PLUG | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R910963411 | O-RINGD | 1 | ||
| R910923831 | R-RINGD | 3 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R910984653 | THROTTLE SCREW | 1 | ||
| R910969260 | THROTTLE SCREW | 2 | ||
| R910979852 | REFERENCE PLATE | 1 | ||
| R910113727 | O-RING | 1 | ||
| R910124214 | HEXAGON SCREW | 4 | ||
| R910186767 | WASHER | 4 |
