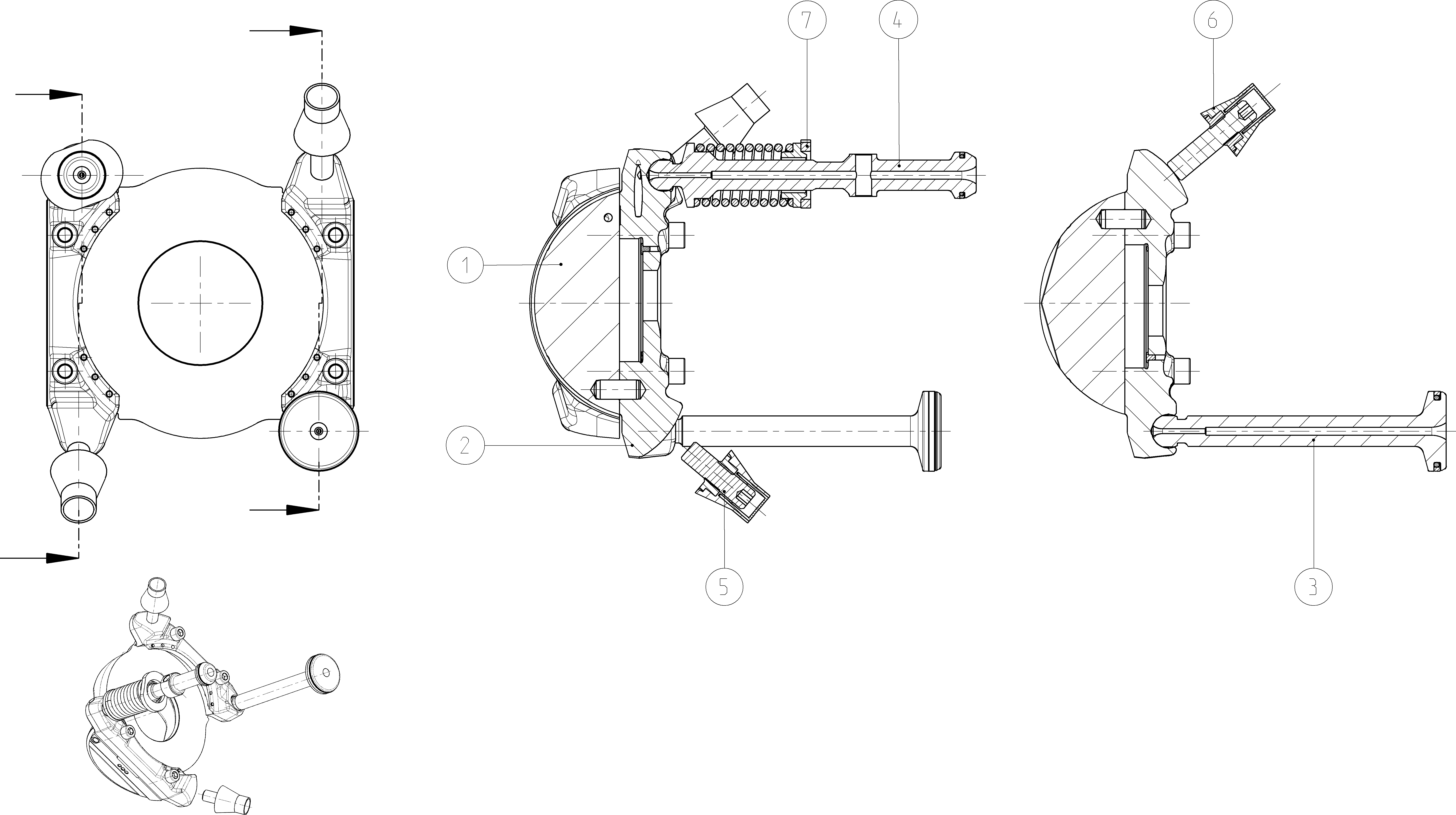

Assembly
CONTROLR902488015
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902493210 | SWASH PLATE | 1 | ||
| R902483510 | SEGMENT | 1 | ||
| R902470672 | POSITIONING PISTON | 1 | ||
| R902470675 | OPPOSED PISTON | 1 | ||
| R902470679 | SETSCREW | 1 | ||
| R902470681 | SETSCREW | 1 | ||
| R902470682 | CENTERING TAB | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902493210 | SWASH PLATE | 1 | ||
| R902483510 | SEGMENT | 1 | ||
| R902470672 | POSITIONING PISTON | 1 | ||
| R902470675 | OPPOSED PISTON | 1 | ||
| R902470679 | SETSCREW | 1 | ||
| R902470681 | SETSCREW | 1 | ||
| R902470682 | CENTERING TAB | 1 |
