Assembly

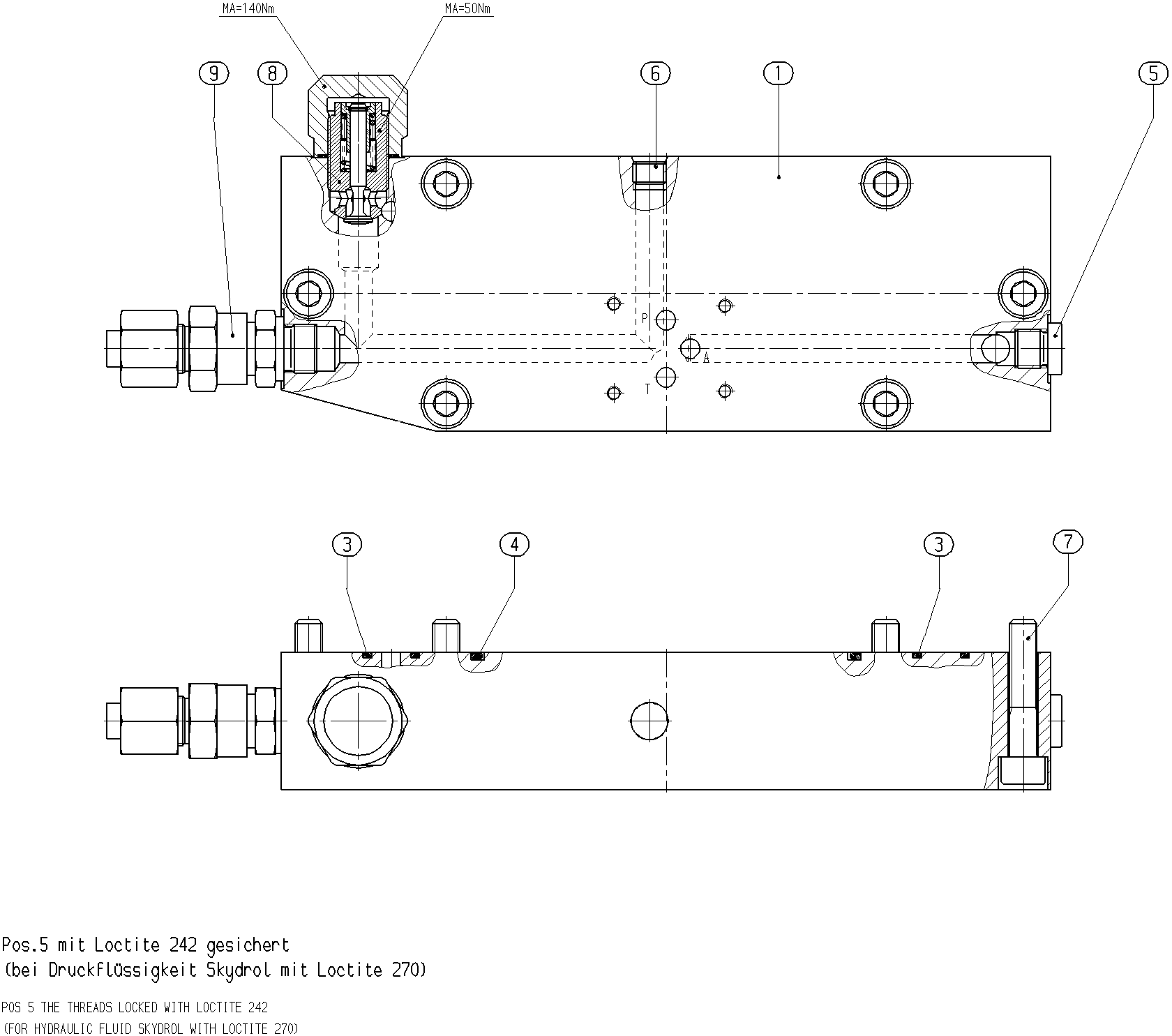

CONNECTION PLATER902488630
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902488629 | INTERMEDIATE PLATE | 1 | ||
| R910302139 | O-RING | 4 | ||
| R910919986 | O-RING | 1 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R910121266 | SOCKET HEAD CAP SCREW | 6 | ||
| R902417140 | CHECK VALVE | 1 | ||
| R910962346 | CHECK VALVE | 1 |
