Assembly

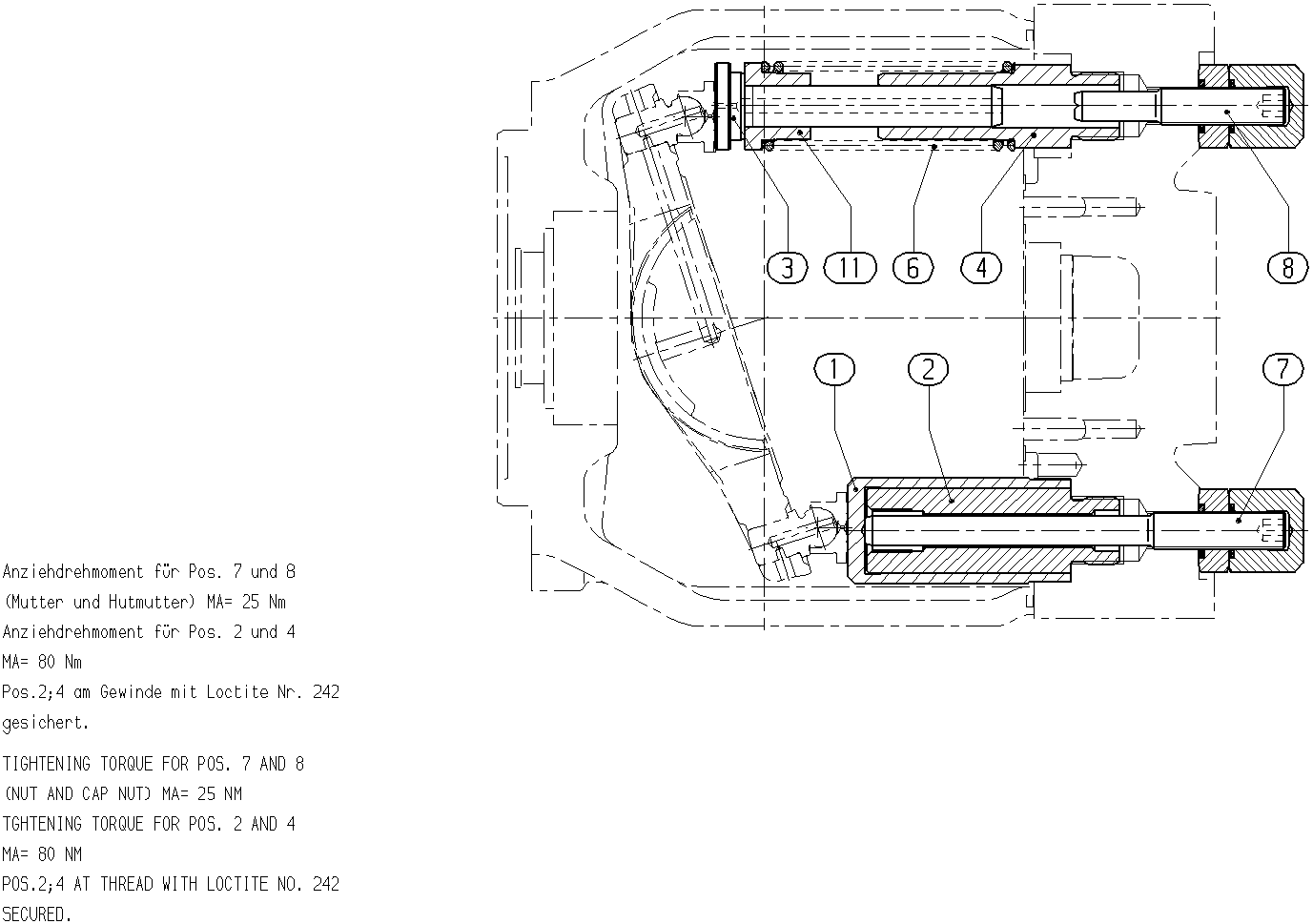

ADJUSTING PIECER902488756
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910916302 | ADJUSTING PISTON | 1 | ||
| R910994710 | PISTON GUIDE | 1 | ||
| R910908999 | OPPOSED PISTON | 1 | ||
| R910908998 | PISTON GUIDE | 1 | ||
| R910908962 | COMPRESSION SPRING | 1 | ||
| R902451488 | STOP SCREW Assembly parts list →L | 1 | ||
| R902451490 | STOP SCREW | 1 | ||
| R910916325 | SPRING DISK | 1 |
