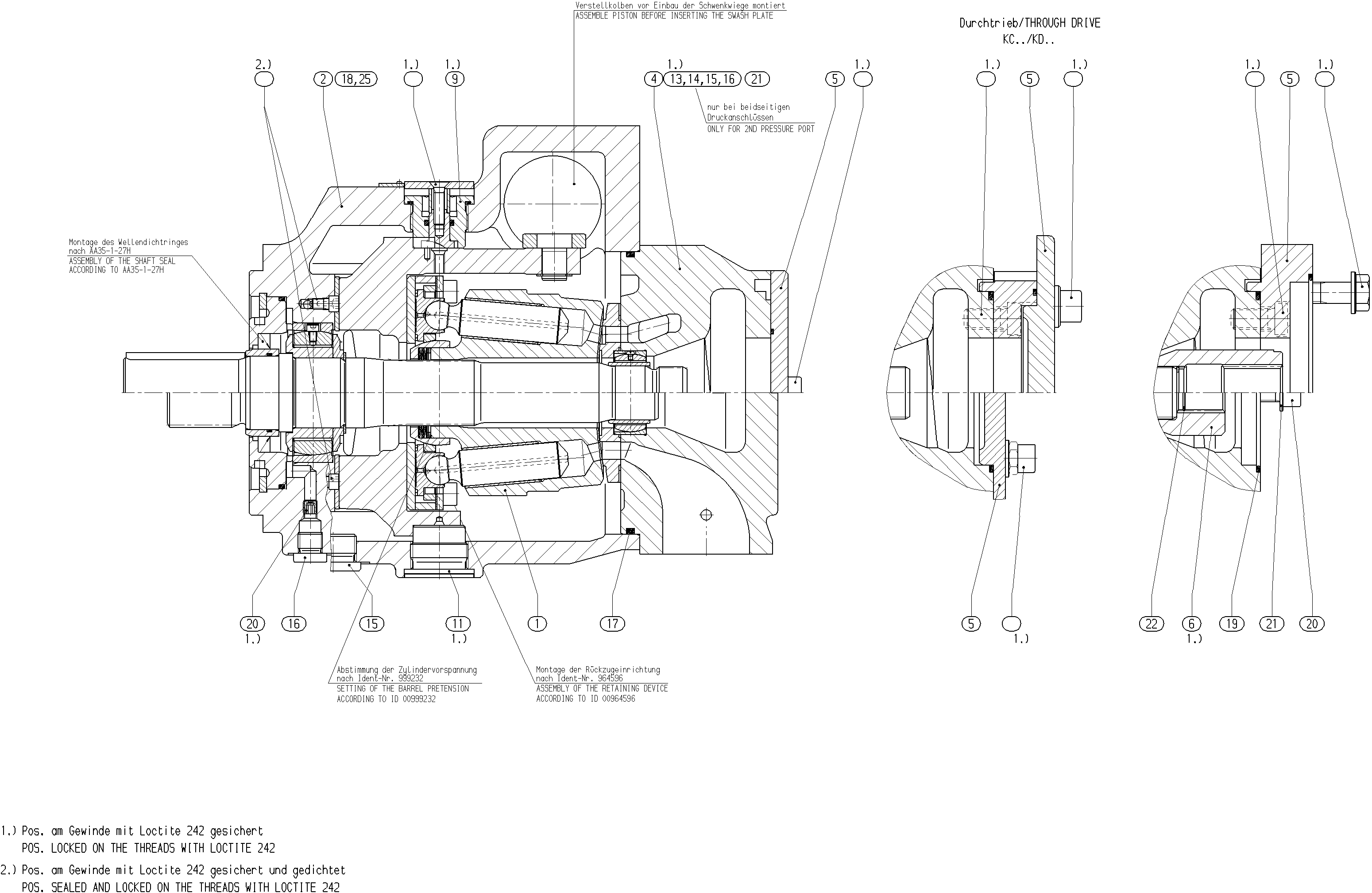

Assembly
BASE UNITR902489562
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902489487 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902489191 | CONNECTION PLATE | 1 | ||
| R910987983 | SPLINED COUPLING | 1 | ||
| 8 | R910962643 | BLANK FLANGE Assembly parts list →L | 1 | |
| R910798363 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910798355 | STUD BOLT Assembly parts list →L | 1 | ||
| R910402303 | SOCKET HEAD CAP SCREW | 4 | ||
| R910942134 | R-RING | 1 | ||
| R909153365 | SCREW PLUGD | 3 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R910765325 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910786365 | O-RING | 1 | ||
| R910582808 | THROTTLE SCREW | 1 | ||
| R910104906 | HEXAGON SCREW | 2 | ||
| R910925530 | NOZZLE | 1 | ||
| R902650190 | WASHER | 2 | ||
| R910967812 | RETAINING RING | 1 | ||
| R902431505 | REFERENCE PLATE | 1 |
