Assembly

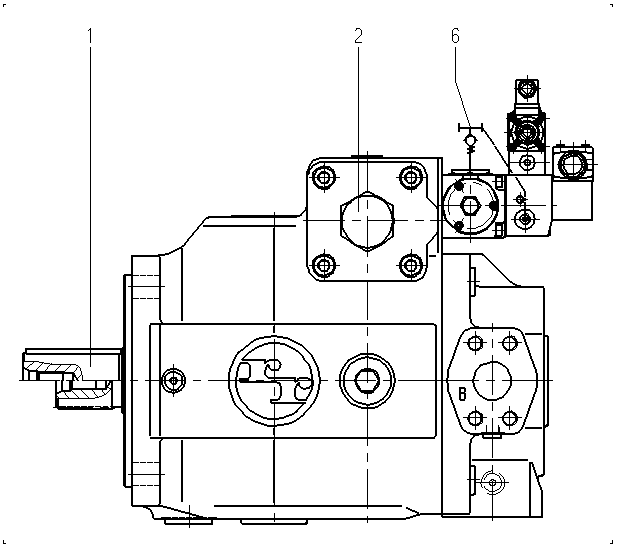

AXIAL-PISTON PUMPR902489669
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902489562 | BASE UNIT Assembly parts list →L | 1 | ||
| R902489667 | CONTROL Assembly parts list →L | 1 | ||
| 3 | R910920956 | SPRING PACK Assembly parts list →L | 1 | |
| R910926624 | PIPING PLAN Assembly parts list →L | 1 | ||
| 61 | R902805708 | SHIPPING PROTECTION | 1 | |
| 62 | R902602012 | SEAL SCREW | 1 | |
| 63 | R902421949 | SHIPPING PROTECTION | 1 | |
| 64 | R902602008 | SEAL SCREW | 1 | |
| 71 | R902573673 | FLANGE COVER | 1 | |
| 81 | R902602008 | SEAL SCREW | 1 | |
| 82 | R910723126 | PLUG | 1 |
