Assembly

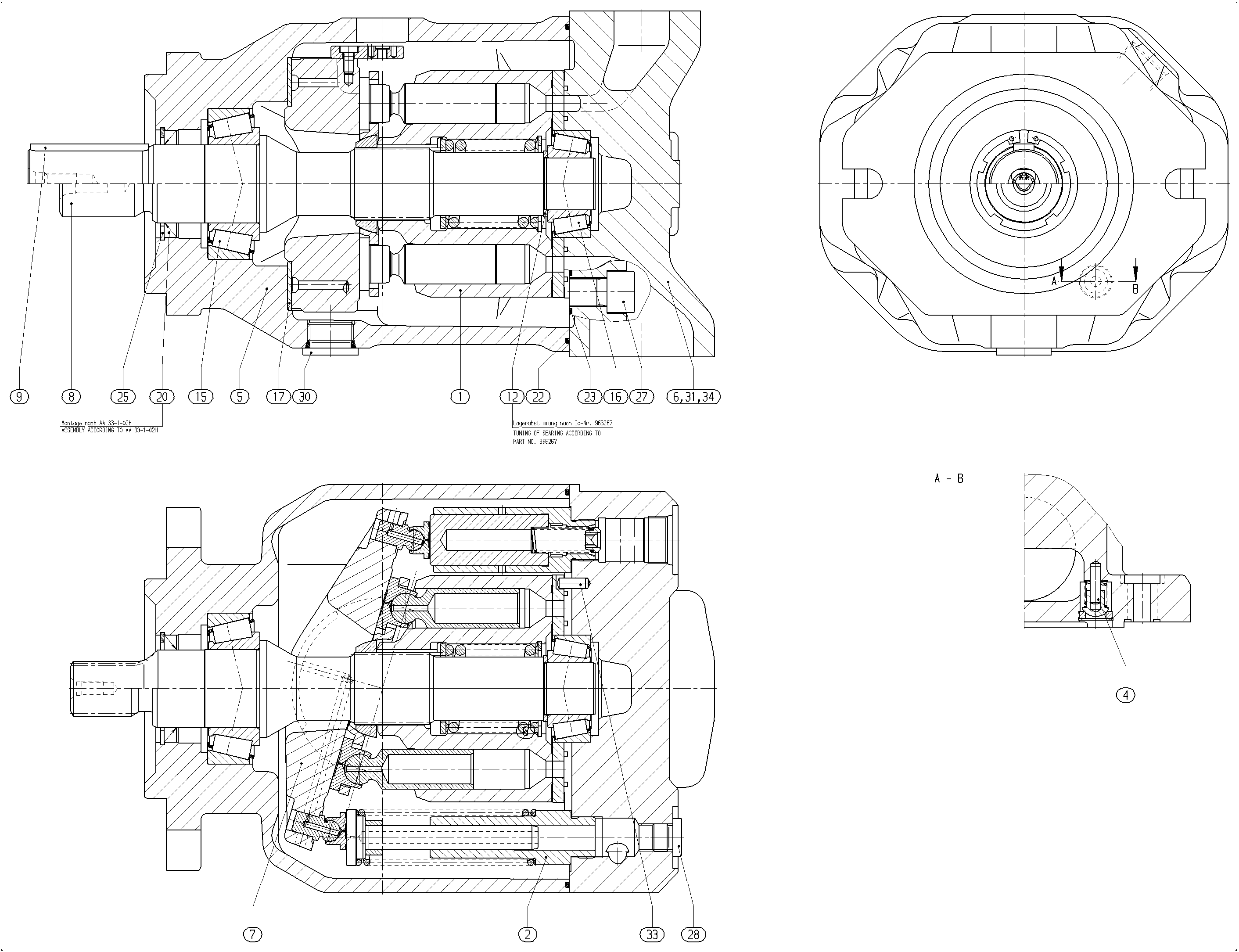

BASE UNITR902490992
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910993825 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902491415 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902422379 | PUMP HOUSING | 1 | ||
| R910960988 | SWASH PLATE | 1 | ||
| R902503227 | DRIVE SHAFT | 1 | ||
| R910964231 | PARALLEL KEY | 1 | ||
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| 14 | R910990150 | STOP RING | 1 | |
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R909086994 | TAPERED-ROLLER BEARING | 1 | ||
| R910925266 | BEARING SHELL | 2 | ||
| R902400728 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910928325 | O-RINGD | 1 | ||
| R913052100 | R-RINGD | 4 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110183 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156649 | SCREW PLUGD | 1 | ||
| R909156864 | SCREW PLUGD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910277193 | STRAIGHT PIN | 1 |
