Assembly

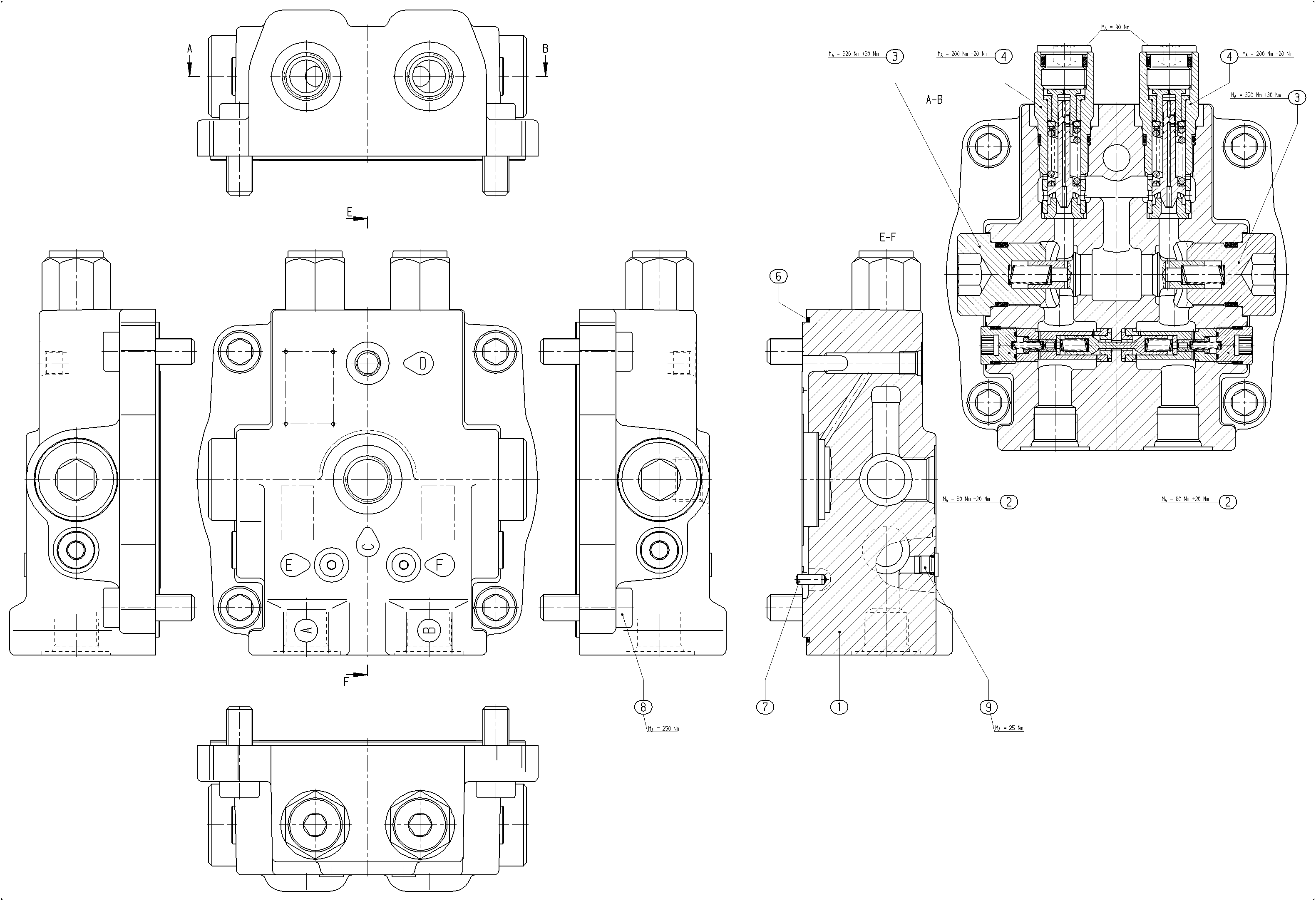

CONNECTION PLATER902491400
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902409425 | CONNECTION PLATE | 1 | ||
| R902412656 | VALVE | 2 | ||
| R902412658 | ANTI-CAVITATION CHECK VALVE Assembly parts list →L | 2 | ||
| R902491370 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R910924723 | O-RING | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 4 | ||
| R910764647 | SCREW PLUG | 2 |
