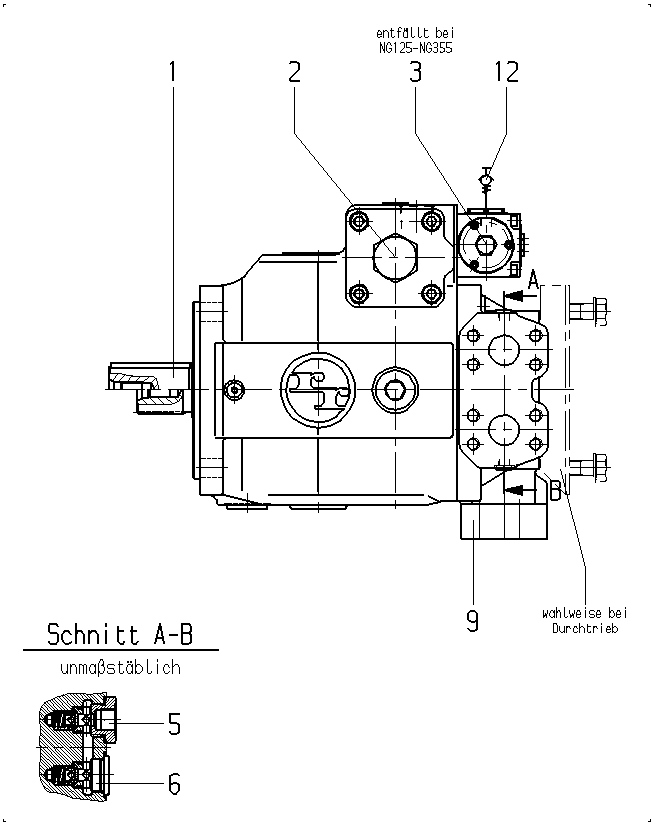

Assembly
AXIAL-PISTON PUMPR902491421
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902465263 | BASE UNIT Assembly parts list →L | 1 | ||
| R910921818 | CONTROL Assembly parts list →L | 1 | ||
| R910920956 | SPRING PACK Assembly parts list →L | 1 | ||
| R910925136 | VALVE MOUNTING KIT | 1 | ||
| R910925179 | VALVE MOUNTING KIT | 1 | ||
| R902412338 | BLANK FLANGE Assembly parts list →L | 1 | ||
| R910920008 | CHECK VALVE | 1 | ||
| 61 | R902805708 | SHIPPING PROTECTION | 2 | |
| 62 | R902602012 | SEAL SCREW | 1 | |
| 64 | R902602010 | SEAL SCREW | 1 | |
| 71 | R902430609 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R910723126 | PLUG | 1 | |
| 82 | R902602008 | SEAL SCREW | 2 |
