Assembly

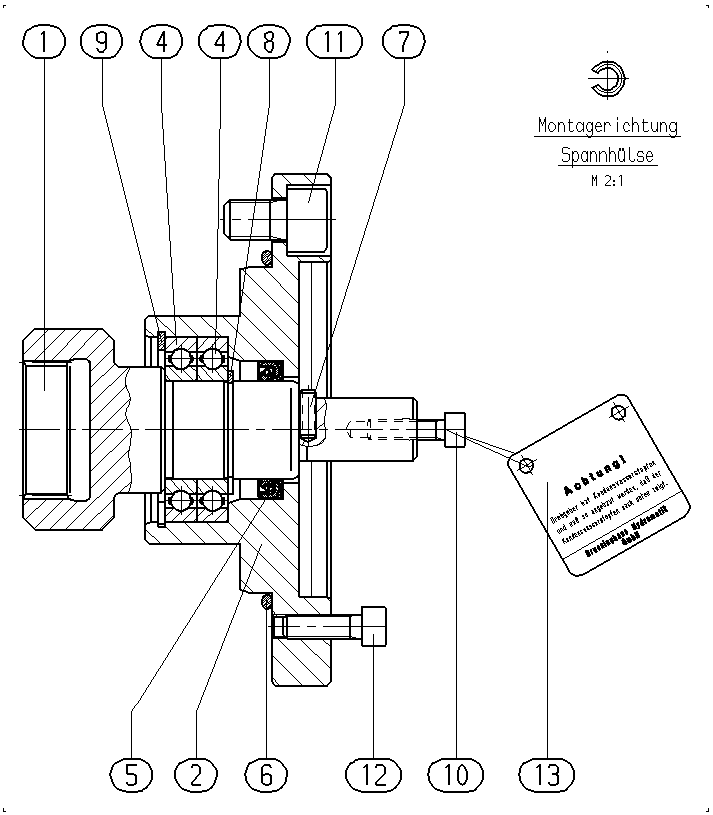

TACHOMETER DRIVE SHAFTR902494199
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902493750 | TACHOMETER SHAFT | 1 | ||
| R902567843 | TACHOMETER FLANGE | 1 | ||
| R910903613 | DEEP-GROOVE BALL BEARING | 2 | ||
| R910794325 | SHAFT SEALING RING | 1 | ||
| R910357049 | O-RING | 1 | ||
| R902651069 | SLOTTED SPRING PIN | 1 | ||
| R910105783 | RETAINING RING | 1 | ||
| R910150576 | RETAINING RING | 1 | ||
| R910120111 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083057 | SOCKET HEAD CAP SCREW | 2 | ||
| R910645095 | SOCKET HEAD CAP SCREW | 6 | ||
| R910973922 | REFERENCE PLATE | 1 |
