Assembly

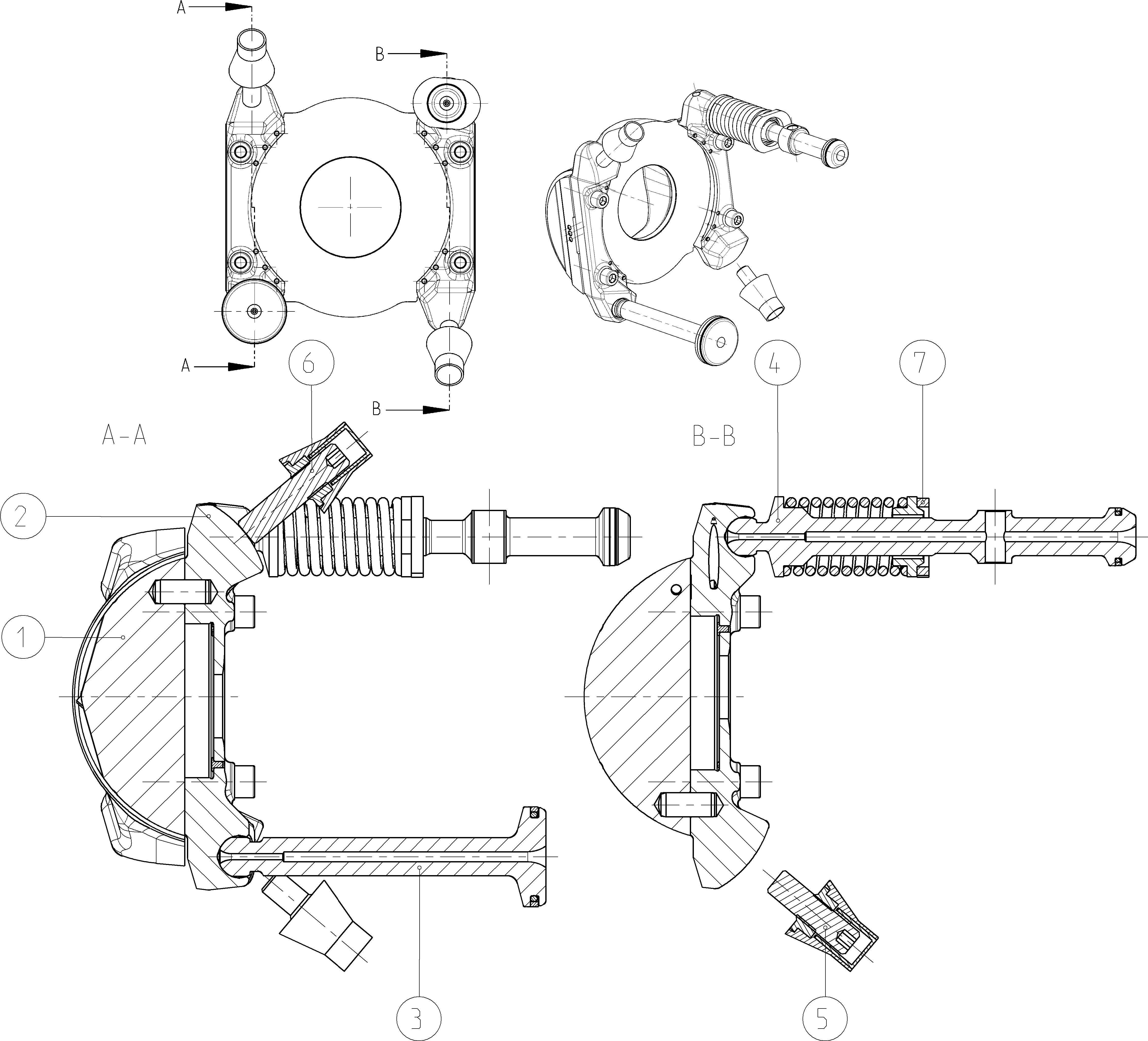

CONTROLR902494376
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902475361 | SWASH PLATE | 1 | ||
| R902510474 | SEGMENT | 1 | ||
| R902494378 | POSITIONING PISTON Assembly parts list →L | 1 | ||
| R902470675 | OPPOSED PISTON | 1 | ||
| R902470679 | SETSCREW | 1 | ||
| R902470681 | SETSCREW | 1 | ||
| R902470682 | CENTERING TAB | 1 |
