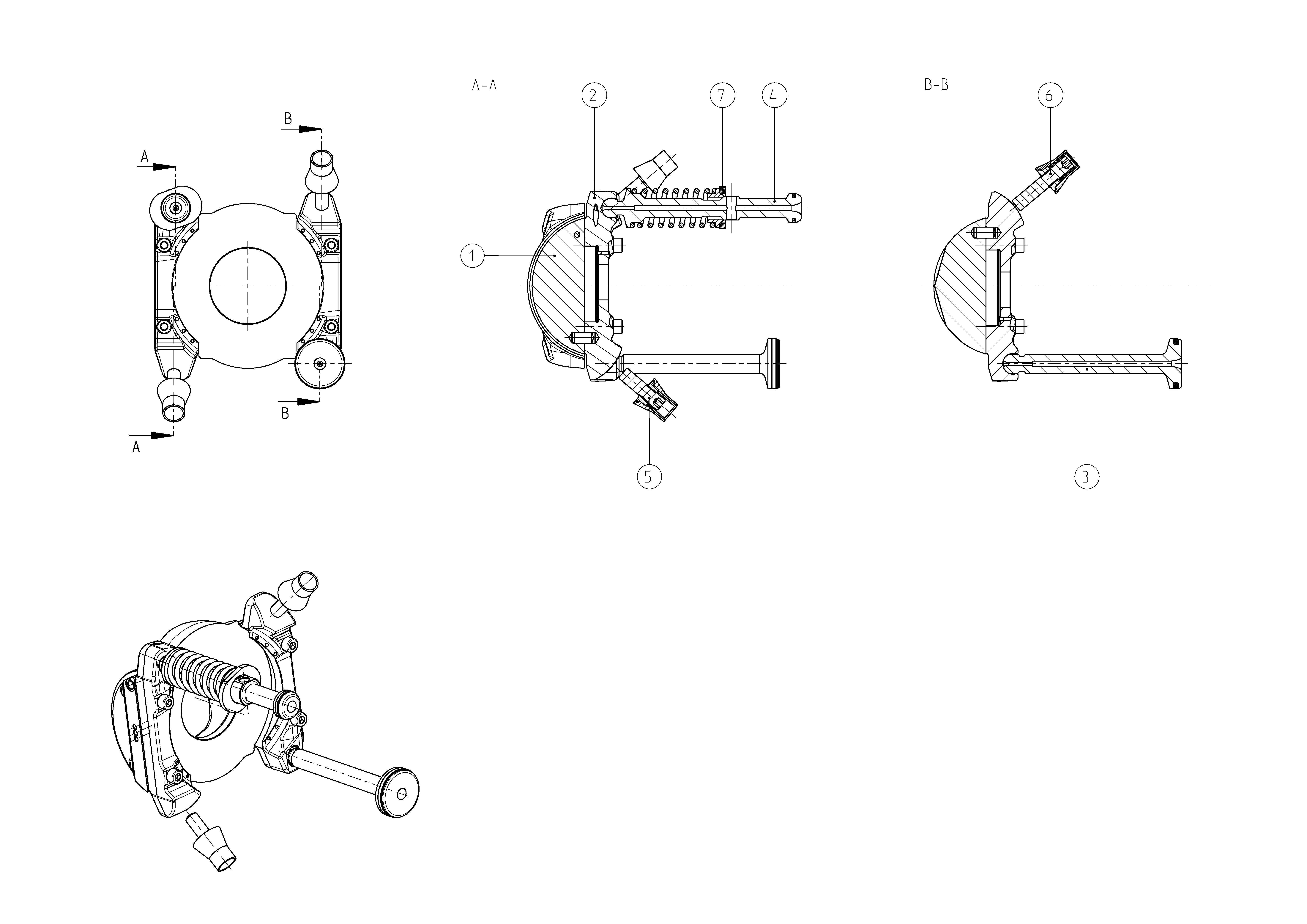

Assembly
CONTROLR902497048
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902495479 | SWASH PLATE | 1 | ||
| R902492509 | SEGMENT | 1 | ||
| R902484534 | POSITIONING PISTON | 1 | ||
| R902484540 | OPPOSED PISTON | 1 | ||
| R902487871 | SETSCREW | 1 | ||
| R902484634 | SETSCREW | 1 | ||
| R902484554 | CENTERING TAB | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902495479 | SWASH PLATE | 1 | ||
| R902492509 | SEGMENT | 1 | ||
| R902484534 | POSITIONING PISTON | 1 | ||
| R902484540 | OPPOSED PISTON | 1 | ||
| R902487871 | SETSCREW | 1 | ||
| R902484634 | SETSCREW | 1 | ||
| R902484554 | CENTERING TAB | 1 |
