Assembly

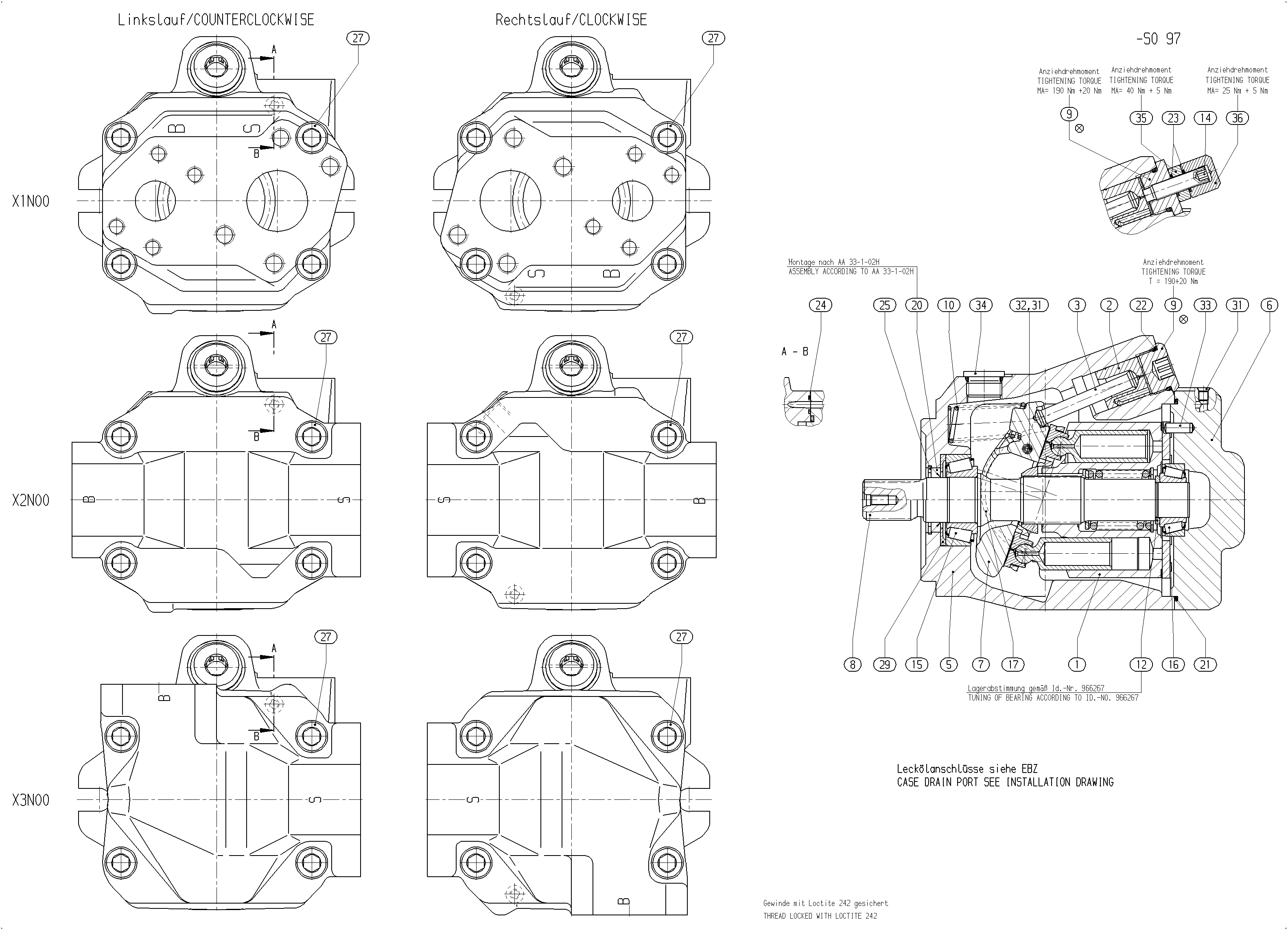

BASE UNITR902501170
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902415876 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902515459 | PUMP HOUSING | 1 | ||
| R910971115 | CONNECTION PLATE | 1 | ||
| R902437120 | SWASH PLATE | 1 | ||
| R902408467 | DRIVE SHAFT | 1 | ||
| R902447576 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910928606 | COMPRESSION SPRING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R902431150 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| R913052048 | O-RINGD | 1 | ||
| R910942133 | R-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910110248 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910925530 | NOZZLE | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
