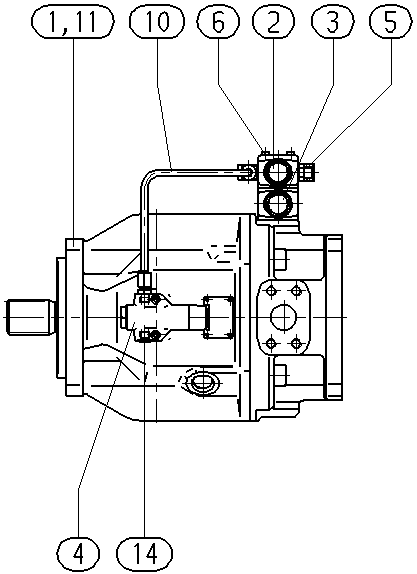

Assembly
AXIAL-PISTON PUMPR902501612
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902501614 | BASE UNIT Assembly parts list →L | 1 | ||
| R910924992 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910924990 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902451979 | ADAPTER Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910964726 | PIPING Assembly parts list →L | 1 | ||
| R902414478 | POWER DIAGRAM | 1 | ||
| R910764647 | SCREW PLUG | 1 |
