Assembly

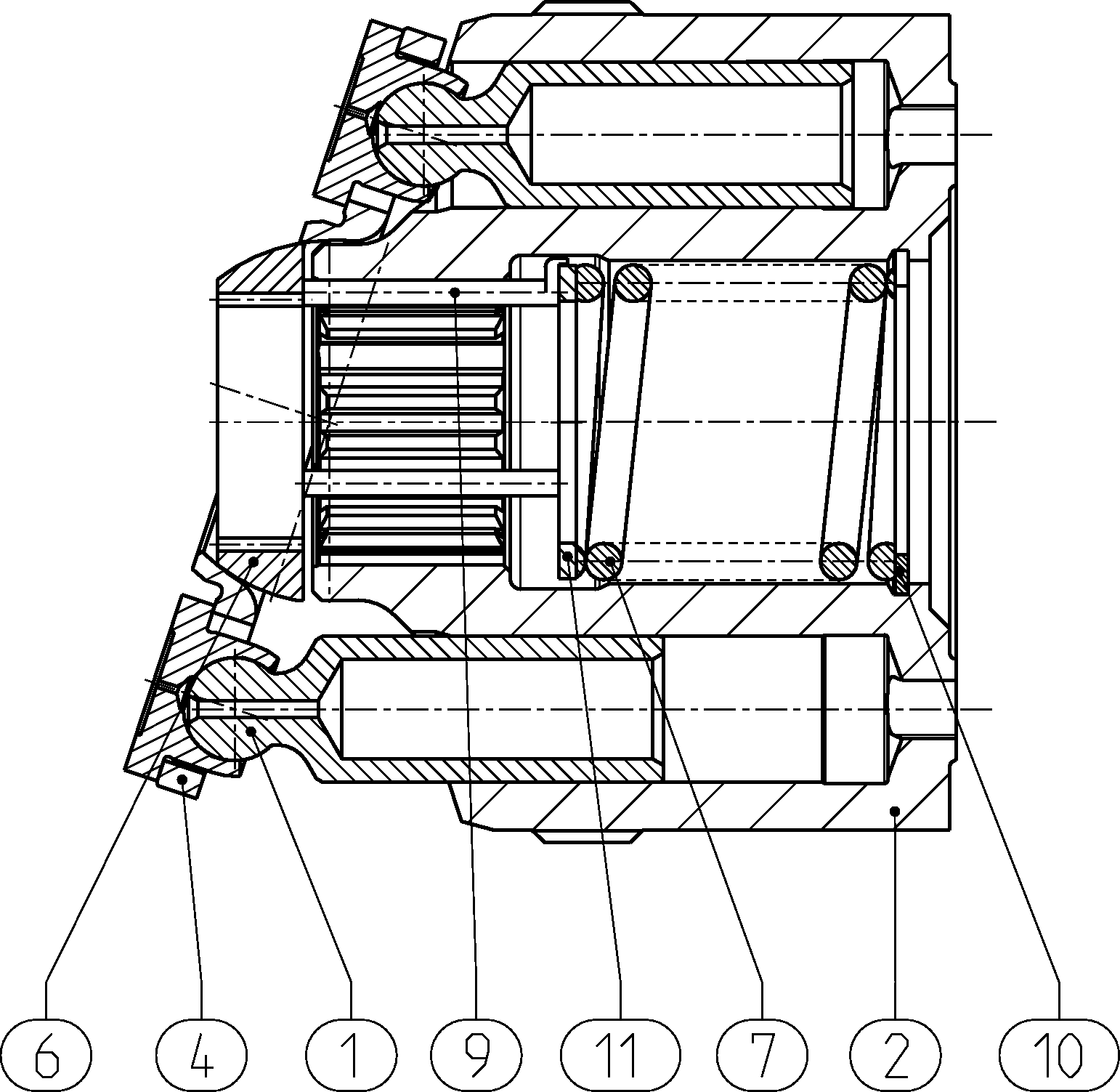

ROTARY GROUPR902505071
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902400814 | PISTON PAD | 9 | ||
| R902505068 | CYLINDER | 1 | ||
| R902538599 | RETAINING PLATE | 1 | ||
| R902436450 | RETAINING BALL | 1 | ||
| R902400724 | COMPRESSION SPRING | 1 | ||
| R902400725 | PRESSURE PIN | 3 | ||
| R902400726 | V-RING | 1 | ||
| R902400727 | SUPPORTING DISC | 1 |
