Assembly

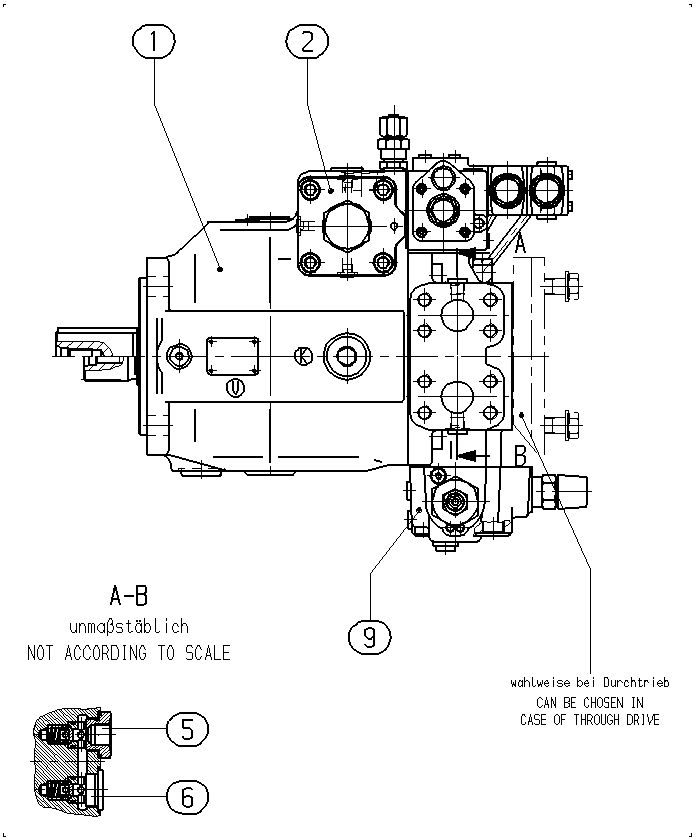

AXIAL-PISTON PUMPR902511177
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902511136 | BASE UNIT Assembly parts list →L | 1 | ||
| R910999468 | CONTROL Assembly parts list →L | 1 | ||
| R910948834 | VALVE MOUNTING KIT | 1 | ||
| R910944807 | VALVE MOUNTING KIT | 1 | ||
| R910902407 | FLUSHING BLOCK Assembly parts list →L | 1 | ||
| 61 | R902805709 | SHIPPING PROTECTION | 2 | |
| 62 | R902602206 | SEAL SCREW | 1 | |
| 64 | R902602013 | SEAL SCREW | 1 | |
| 65 | R902602013 | SEAL SCREW | 1 | |
| 71 | R902568998 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602008 | SEAL SCREW | 2 | |
| 82 | R910795224 | PLUG | 1 |
